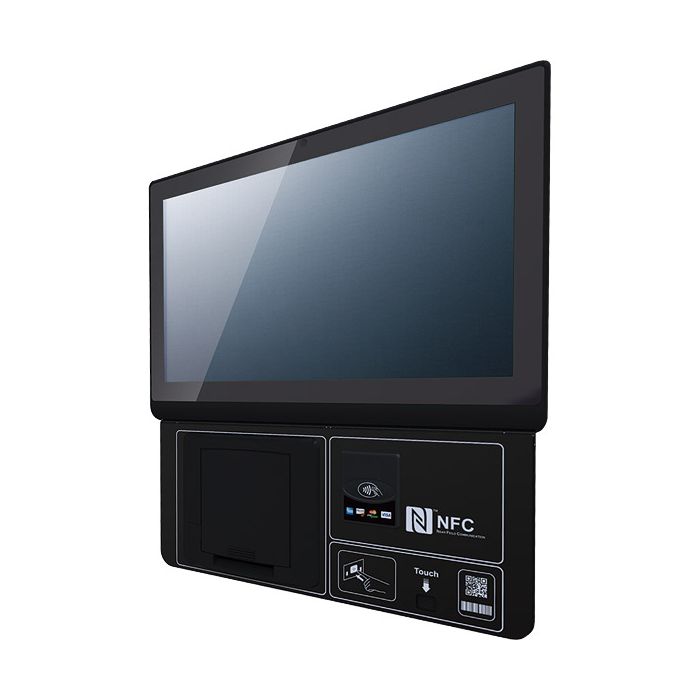

KPPC 1812 18.5" WXGA Kiosk-Style Panel PC

End of Life
In stock
KPPC 1812
Brand: Nexcom

18.5" Kiosk Panel PC, Quad core Intel® Celeron® processor J1900 2GHz

Enquire Now
Enquire about this product

Quad core Intel® Celeron® processor J1900 2GHz

18.5" WXGA (1366x768) P-cap zero bezel touch display

2MP front webcam with autofocus

4GB of DDR3L SO-DIMM memory

320GB 5,400rpm 2.5" HDD

Ultra slim 64.5mm ΠVESA mounting (100x100mm)

24VDC 120W Power brick

This product is listed in Nexcom

System Processor

Motherboard: NP-BYT0-A / NC-DK0-A Processor: Intel® Celeron® J1900 Processor, 4C, 2.0 GHz, 2MB Cache System Memory:

- 1 x DDR3L 1333 SO-DIMM

- Default: 1 x SO-DIMM DDR3L 1333 4GB

- Optional: 1 x SO-DIMM DDR3L 1333 8GB Graphics: Integrated graphics controller, Intel's Gen 7 graphics and media encode/decode engine

LCD Touch Screen

LCD Size: 18.5" TFT WXGA (1366x768) 250cd/m² LCD panel Touch Screen: 18.5" Projected Capacitive Touch Panel

Storage Device

1 x 2.5" SATA HDD 320GB 5,400rpm w/ HDD Door


1 x Full size Mini-Card slot (mini-PCIe/USB/3G SIM slot)

1 x Half size Mini-Card slot (mini-PCIe/USB)

Rear I/O

Serial (4):
- 2 x RJ-50 Powered RS-232 (COM1, COM2, adjust RI/5V by BIOS setting)
- 1 x RJ-50 Powered RS-232 (COM3, adjust RI/ 12V by BIOS setting)
- 1 x RJ-50 Powered RS-232/ 422/ 485 (COM4, adjust RI/ 12V & RS232/422/485 by BIOS setting)

USB (2/2): 2 x USB 2.0; 2 x USB 3.0

Parallel: 1 x DB-25 Parallel Port

LAN: 1 x RJ-45 (10/100/1000Mbps Ethernet)

VGA: 1 x DB-15 VGA port for 2nd Display Cash Drawer

Port: 1 x RJ-11, support Two Cash Drawers (24V, Max 1.1A)

DC-in Jack: 1 x DC-24V Input

DC-Out Jack: 1 x DC-12V Output for 2nd Display Power (12V, Max 3.0A)

Line-Oout/Mic: 1 x Line-out for External Audio Speaker & Mic-in


1 x System Buzzer

System Control

1 x Power ON/OFF Switch


Default: External AC DC 24V/5.0A 120W Power Brick Optional: Upgrade to DC-24V 180W Power Brick


Web Camera: Default: build-in 2M Auto Focus Web CAM,

USB interface MSR: Optional: ISO 3 Tracks MSR (USB/RS232 combo interface or PS/2) MSR/

Fingerprint Combo: Optional: ISO 3 Tracks MSR (PS/2) & Fingerprint (USB) combo RFID/

NFC: Optional: RFID Mifare Read/ Write Module; NFC Contactless Reader

Module Scanner: Optional: 2D Scanner Thermal Printer: Optional: 2"/3" Thermal Printer


Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)

Storage Temperature: -20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity: 20% - 80% RH non-condensing

Storage Humidity: 20% - 85% RH non-condensing


Display Head: 461.6mm (W) x 309.8mm (H) x 64.5mm (D)

Package Size: 585mm (L) x 235mm (W) x 450mm (H) (No MSR)


Net Weight/Gross Weight: 9.0kg (19.8lbs) / 10.5kg (23.2lbs)

Operating System

Windows 8


POSReady 7

Win 7 Pro


Fedora 17
