Shop M200i - 19.5" Intel N2930

SKU: M200i - 19.5" Intel N2930

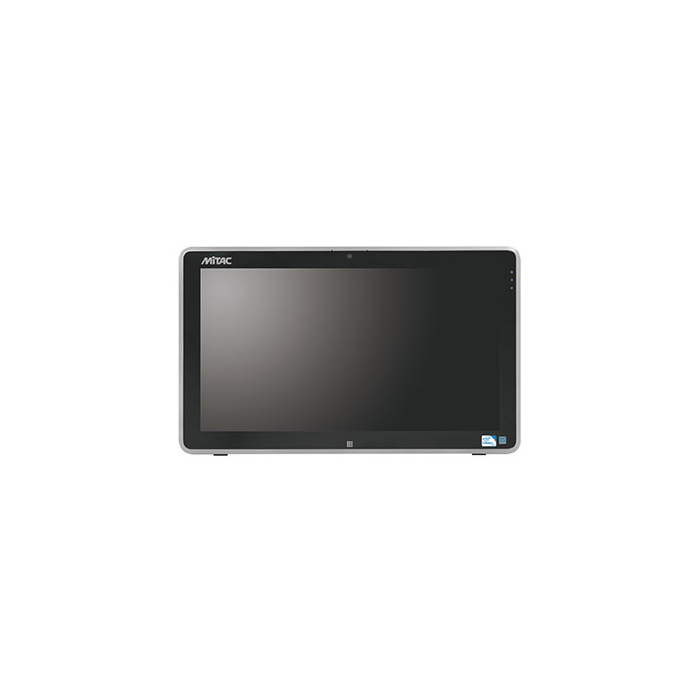

19.5" All In One System / Intel® N2930/ Light Industrial Panel PC

Datasheet

Description

19.5" HD TFT LCD with 30,000 hrs backlight lifetime

True-flat touchscreen with projected capacitive multi-touch control

Download

Data sheet

More Information

Specifications

M200i (M200i) Specifications
MECHANICAL	MOUNTING	100 mm x 100 mm VESA Mount Kit (Optional)
	DIMENSIONS (W X D X H)	501.7 x 309.4 x 29 mm
	WEIGHT	3kg (6.6 lb)
LCD	DISPLAY TYPE	19.5" TFT-LCD
	MAX. RESOLUTION	1600 x 900
	MAX. COLORS	16.7M (6 bit)
	LUMINANCE (cd/m2)	250
	VIEWING ANGLE (H/V)	178° / 178°
	LED BACKLIGHT LIFETIME (hrs)	30,000
SIDE I/O PORT	SD CARD READER	-
	WEBCAM	1.0 HD mega pixel, HD 720p 16:9 lens with array digital microphone
	SYSTEM BOTTOM	Power
TOUCH SCREEN	TYPE	P-CAP
TOUCH SCREEN	TOUCH SCREEN	True-flat 10 points
SYSTEM	PROCESSOR	Intel® Celeron® Processor N2930 (2M Cache, up to 2.16 GHz)
	CHIPSET	Intel® SoC Integrated
	SYSTEM MEMORY	DDR3L 1333 MHz / 1 x 204-pin SO-DIMM / Max. 8GB (Non-ECC)
	ETHERNET	Realtek® RTL8111G Giga LAN
	I/O PORT	2 x RS232 / 4 x USB 2.0 / 1 x DC Jack / 1 x RJ-45
	EXPANSION SLOT	Mini PCIe Half size (PCIe / USB)
	STORAGE	1 x SATA 2.5” HDD / SSD bay
	STEREO SPEAKER	2 x 2W
	OS SUPPORT	Windows 7 32bit / 64bit / Windows 10 64bit / Linux (support by request)
	WATCHDOG TIMER	1~255 steps by software program
POWER REQUIREMENT	POWER INPUT	19V DC-in connectivity
POWER REQUIREMENT	POWER ADAPTER	AC / DC / DC19V / 3.4A / 65W adapter
ENVIRONMENTAL	OPERATING TEMPERATURE	0 ~ 35°C (32 ~ 95°F)
	STORAGE TEMPERATURE	-20 ~ 60°C (-4 ~ 140°F)
	STORAGE HUMIDITY	10% ~ 95% @60°C non-condensing
	VIBRATION RESISTANCE	Operating Random vibration Test 5-500Hz, 0.3 Grms@with HDD
	SHOCK RESISTANCE	Operating 50 G peak (3 ms duration)
	EMC	CE / FCC Class B
	FRONT PANEL PROTECTION	-
PACKING LIST	PACKAGE	1 x Driver CD / 1 x Quick Installation Guide / US + EU Power Cord / 1 x Power Adapter (19V, 65W, DC Jack Type) / 1 x Panel PC
