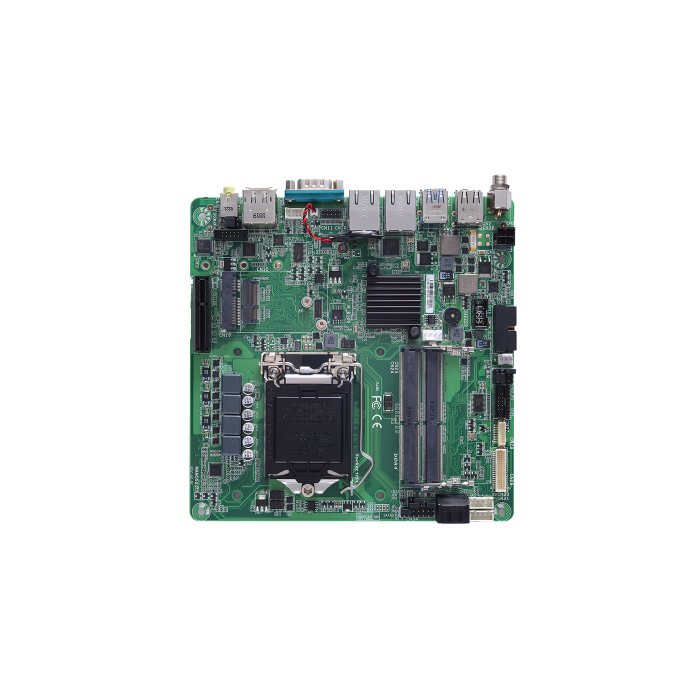

MANO521 Thin Mini-ITX SBC 9th/8th Gen i7/i5/i3

In stock
SKU:
MANO521PHGGA-xxxx
Brand: Axiomtek

Category: Single Board Computers

Thin Mini-ITX SBC with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3 Processor, DisplayPort++, HDMI, LVDS, VGA, USB 3.0, M.2 and Dual GbE LAN


Enquire Now
Enquire about this product:

LGA1151 9th/8th gen Intel® Core™ i7/i5/i3 processor

Intel® H310 chipset (Q370 optional)

2 DDR4 SO-DIMM for up to 32GB of memory

4 USB 3.0 and 4 USB 2.0 ports

2 COM ports

2 SATA-600, mSATA and M.2 Key M (NVMe)

PCIe x4, M.2 Key E, PCI Express Mini Card slot


This product is listed in Digital Signage, Industrial Automation, Mining, Transport, Axiomtek, Embedded Boards
CPU
  • LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (up to 65W)
Chipset
  • Intel® H310
  • Intel® Q370 (optional)
System Memory
  • 2 x 260-pin DDR4-2666/2400 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
  • 1 x RS-232
USB
  • 4 x USB 3.0
  • 4 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i211-AT & Intel® i219-V (LM))
Display
  • 1 x DisplayPort++
  • 1 x HDMI 1.4b (3840 x 2160 @30Hz)
  • 1 x LVDS
  • 1 x VGA (Wafer connector)
  • 1 x eDP (optional)
Digital I/O
  • 8-channel in/out programmed
Audio
  • MIC-in/Line-in/Line-out
Storage
  • 2 x SATA-600
  • 1 x mSATA
  • 1 x M.2 Key M (22 x 42/22 x 60/22 x 80); supports NVMe
Expansion
  • 1 x PCIe x4
  • 1 x M.2 Key E (22 x 30)
  • 1 x Full-size PCI Express Mini Card slot
Others
  • Infenon SLB9665TT2.0 with TPM 2.0 compliant
Battery
  • Lithium 3V/220mAH
Power Input
  • DC Power Jack connector
  • ATX 2 x 2-pin vertical/horizontal(optional) connector support 12V, 19V to 24 VDC input
  • AT Auto Power On function supported
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 170 x 170 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
