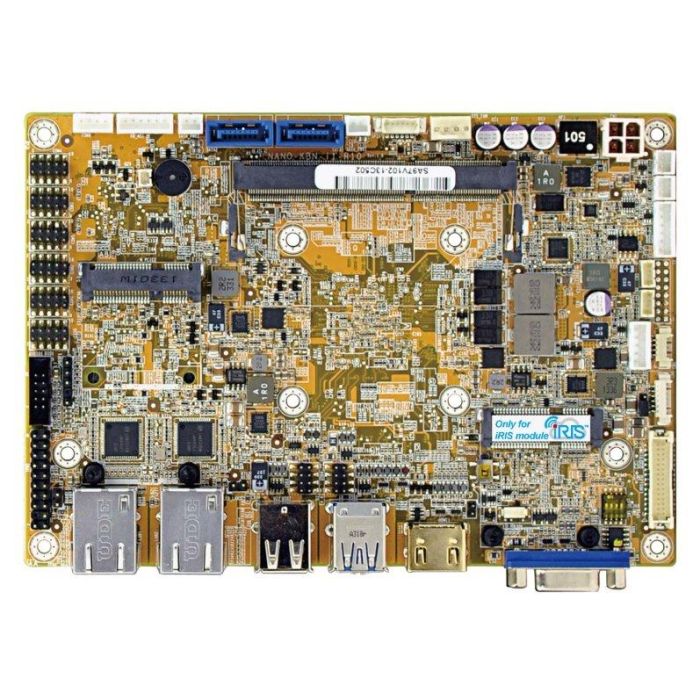

EPIC SBC supports AMD® Embedded G-Series SoC

Datasheet

Description

EPIC SBC supports AMD® Embedded G-Series SoC

· EPIC SBC supports AMD® Embedded G-Series SoC

· Dual independent display support

· 1.35V DDR3L 1600/1333 MHz SDRAM supports up to 8 GB

· HD Audio supported by S/PDIF

· Support IPMI 2.0 with iRIS-1010 module

· COM, USB 3.0, SATA 6Gb/s PCIe Mini, mSATA and audio supported

· IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Product Data Sheet

User Manual

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
CPU Cooler
CPU Cooler	N/A
Display
Display	Dual independent display VGA (up to 2048x1536@60Hz) HDMI (up to 3840x2160@60Hz) 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
Environment
Humidity	5% ~ 95%, non-condensing
Operating Temperature	0°C ~ 60°C
Expansion Slots
Expansion Slots	1 x Full-size PCIe Mini card slot (supports mSATA co-lay SATA port 2)
I/O Interface
Audio	Realtek ALC892 HD Audio codec 1 x S/PDIF (1x4 pin) 1 x Analog audio (2x5 pin)
Digital I/O	1 x 8-bit digital I/O (2x5 pin)
Ethernet	LAN1: Intel® I210-AT PCIe controller with NCSI support LAN2: Intel® I211-AT PCIe controller
I/O Interface
I/O Interface	2 x USB 3.0
	2 x USB 2.0
	4 x Internal USB 2.0
	1 x Internal RS-422/485
	5 x Internal RS-232
Option
iRIS	1 x iRIS-1010 slot
Power
Power consumption	[email protected] (AMD GX-415GA 1.5GHz CPU with 1600 MHz 8GB DDR3 memory)
Storage
Storage	2 x SATA 6G/s with 5V SATA power connector (no RAID)
System
CPU	AMDR Embedded G-Series ""eKabini"" SoC GX-415GA on-board Soc (1.5GHz, quad-core, 2MB cache, TDP=15W)
CPU Socket	On Board
Memory Max.	One 204-pin 1600/1333 MHz single-channel DDR3 & DDR3L SDRAM unbuffered SODIMM slot supports up to 8GB
Watchdog Timer
Watchdog Timer	Software programmable, support 1~255 sec. system reset
