NISE 105 - Intel Atom E3826, 9~36VDC input

In stock
SKU:
NISE 105
Brand: Nexcom

Intel Atom® Processor E3826 Dual Core Fanless System

Enquire Now

Please fill in your details below, we will get back to you as soon as possible

The NISE 105 has high integration with optional mini-PCIe module and 4 x COM ports, making it a real intelligent system for various applications such as factory automation applications (with optional PROFIBUS®, PROFINET®, DeviceNET®, EtherCAT®, EtherNet/IP™ Master module), network applications (with optional GbE LAN, Wi-Fi, 3.5G/4G LTE module) and communication applications. Wide temp operation and silent fanless design completes the package.



·         Onboard Intel Atom® processor E3826 dual core, 1.46GHz

·         Dual Independent Display from DVI-I and HDMI

·         2 x Intel® I120IT LAN ports support WoL, Teaming and PXE

·         2 x USB2.0 & 1 x USB3.0

·         4 x COM ports (COM1&COM2 with RS232/422/485, jumper-free setting)

·         1 x Optional Interface for optional Wi-Fi/3.5G modules

·         External RTC battery holder for easy replacement

·         Support -20 ~ 70 degree C extended operating temperature

·         Support 9-30VDC input (nominal DC input: 24V)

·         Embedded Computers

CPU Support Onboard Intel® Atom™ processor E3826 Dual Core, 1.46GHzSupport Intel® Atom™ E3800 processor family from Single Core E3815, Dual Core E3825/E3826/E3827 and Quad Core E3845 with difference SKUs
Main Memory 1 x DDR3L SO-DIMM Socket, Support DDR3L 1066/1333 8GB RAM max., un-buffered and non-ECC
Display Option Dual Independent Display
- HDMI and DVI-D
- HDMI and VGA (via DVI-I to VGA converter)

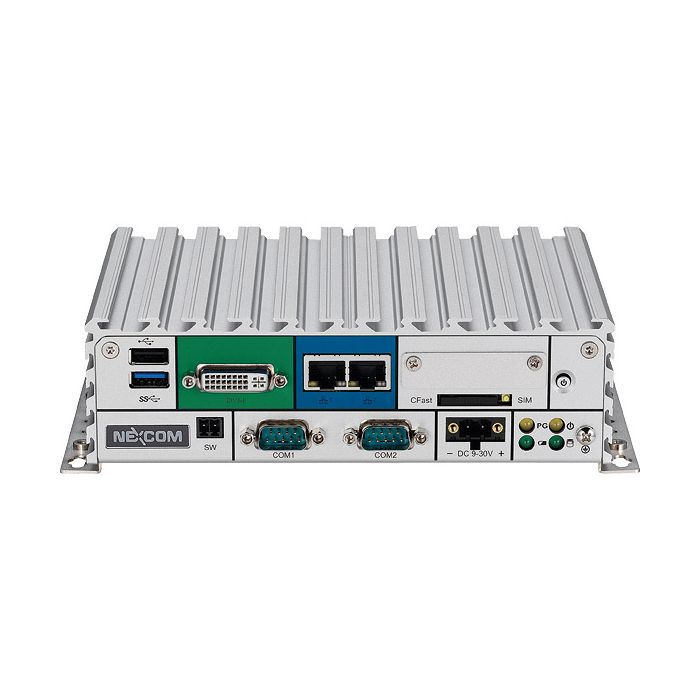

I/O Interface-Front ATX power on/off switch1 x Power Status/1 x HDD Access/1 x Battery Low/1 x Programing LEDs1 x External CFast socket1 x SIM Card holder2 x Intel® I210IT GbE LAN Ports, support Wake on LAN, Teaming and PXE1 x DVI-I Display Output1 x USB3.0 (900mA per each)1 x USB2.0 (500mA per each)2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control
- Jumper-free setting on RS232/422/485
- Support 5V/12V/Ring function by jumper setting, Ring as the default (COM2 Only)
1 x Remote Power ON/OFF Switch1 x 2-pin DC input, support +9 to 30VDC input (nominal DC input: 24V)
I/O Interface - Rear 1 x USB2.01 x HDMI1 x RTC Battery2 x DB9 for COM3 & COM4 support RS232 only1 x Mic-in & 1 x Line-out2 x Antenna Holes for optional Wi-Fi/3.5G antenna1 x Optional I/F for optional miniPCIe Wi-Fi/3.5G modules
I/O Interface - Internal 4 x GPI and 4 GPO (5V, TTL Type)
Storage Device 1 x CFast (SATA2.0)1 x 2.5" HDD (SATA2.0)
Expansion Slot 1 x Mini-PCIe socket for optional Wi-Fi/ 3.5G modules
Power Requirement Power input: +9VDC to +30VDC (nominal DC input: 24V)1 x Optional 24V, 60W power adapter
Support OS Windows 8, 32bit/64bitWindows Embedded Standard 8, 32-bit/64-bitWindows 7, 32-bit/64-bitWindows Embedded Standard 7, 32-bit/64-bitWindows Embedded Compact 7, 32-bitWindows 10 IoT Enterprise, 64-bitLinux Kernel version 3.8.0
Dimensions 185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket
Construction Aluminum and Metal Chassis with fanless design
Environment Operating Temperature:
Ambient with air flow: -20°C to 70°C with industrial grade device
(According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage Temperature: -30°C to 85°CRelative Humidity: 10% to 95% (non-Condensing)Shock Protection:
- HDD: 20G, half sine, 11ms, IEC60068-2-27
- CFast: 50G, half sine, 11ms, IEC60068-2-27
Vibration Protection w/HDD Condition:
- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6
Vibration Protection w/CFast & SSD Condition:
- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Certifications CEFCC Class AUL/ cUL
