The NISE 106 is a highly integrated fanless embedded PC with optional Mini-PCIe module and 4 x COM ports which makes it a reliable connection with devices in factory automation applications, IOT applications (with optional GbE LAN, Wi-Fi, 3.5G/4G LTE module) and communication applications.
1 x DDR3L SO-DIMM socket, support DDR3L 1600 8GB RAM max., un-buffered and non-ECC
Display Option
1 x HDMI + 1 x DVI-D + 1 x DP display port

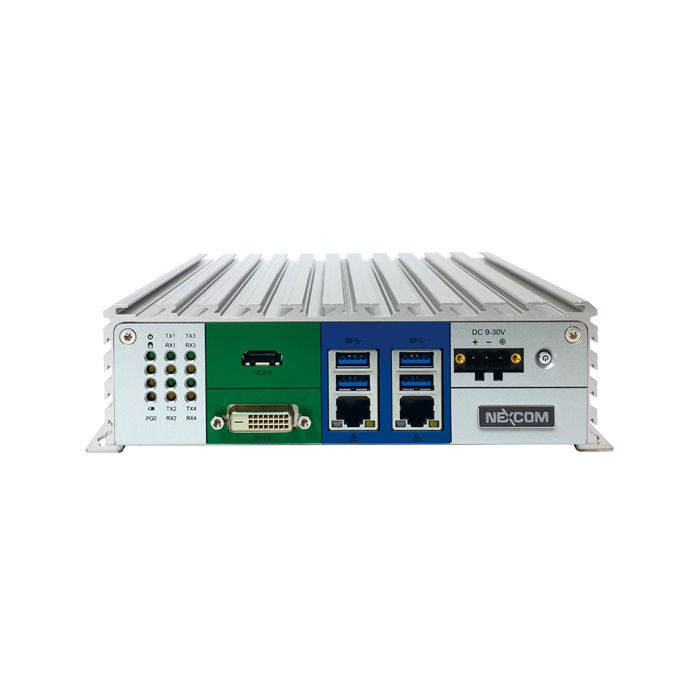

I/O Interface-Front
ATX power on/off switch1 x Power status/1 x HDD access/1 x battery low/1 x programing/4 x Tx/Rx LEDs2 x Intel® I210AT GbE LAN ports; Support WoL, Teaming and PXE1 x HDMI + 1x DVI-D display output4 x USB 3.0 (900mA per each)1 x 3-pin DC input, support +9 to 30VDC input
I/O Interface - Rear
1 x Display Port1 x SIM Card holder1 x external CFast socket2 x DB9 for RS232/422/485 with auto flow control (COM1 and COM2)2 x DB9 for RS232 (COM3 and COM4)2 x Antenna holes for optional Wi-Fi/3.5G antenna1 x remote power on/off switch1 x optional I/F for optional Mini-PCIe Wi-Fi/3.5G/LTE/NEXCOM's automation module output
I/O Interface - Internal
4 x GPI and 4 x GPO (5V, TTL type)
Storage Device
1 x 2.5" HDD (SATA3.0)
Expansion Slot
1 x Mini-PCIe socket for optional Wi-Fi/4G LTE/3.5G modules
Power Requirement
Power input: +9 to 30 Vdc1 x optional 24V, 60W power adapter
Dimensions
185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket
