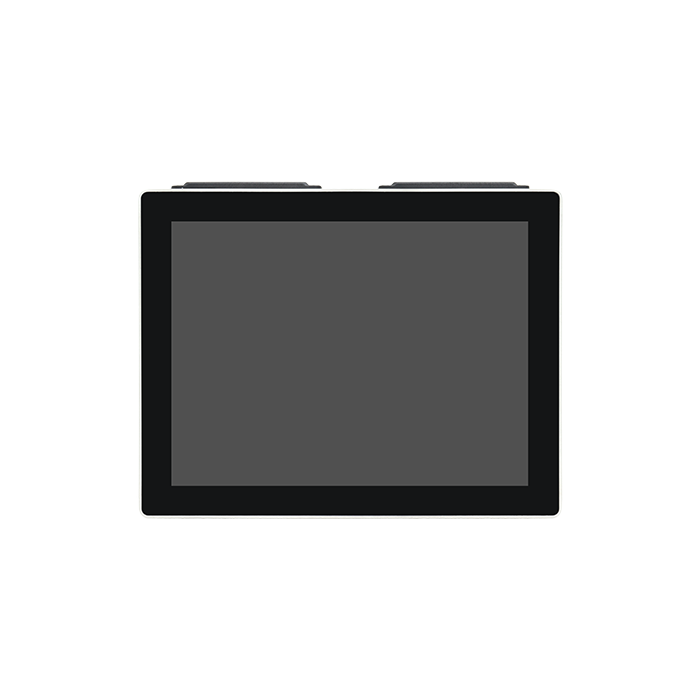

NuTAM-915EP(H) 15" Fanless IP66/IP69K Stainless Steel Panel PC
15" XGA Intel Core Ultra 5/7 Platform Fanless IP66/IP69K Stainless Steel Panel PC
Key Features:
- 15" Fanless Stainless Steel Panel PC
- Intel Core Ultra Processors (Series 1)
- True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
(Grade 316 for Option) - Support Projective Capacitive Touch
- On/off Button on the Side Edge for Hygienic Cleaning
- IP66/IP69K Rated with M12 Connectors
- DC 9~36V Wide Ranging Power Input
- Support Ergonomic Versatile Mounting: Yoke Mount / VESA Mount
Description
Product Overview
The Aplex NuTAM-9E Series is a rugged stainless steel panel PC designed for industrial, transport, outdoor and hygienic applications. Powered by Intel Core Ultra processors, it pairs high computing performance with a sealed, fanless IP66 / IP69K stainless steel enclosure. Available with 15", 17" or 21.5" touch displays, the series supports projected capacitive touch and high brightness options. With flexible I/O and expansion, wide DC power support and total environmental protection, the NuTAM-9E Series is ideal for control panels, process monitoring, smart terminals, harsh environment HMIs or public information systems.
Key Features
Durable Stainless Steel Construction
-
SUS304 stainless steel enclosure for corrosion and contamination resistance
-
Optional SUS316 stainless steel chassis for enhanced chemical resistance
-
IP66 and IP69K total protection against water and dust ingress
-
Designed for sanitation-critical, outdoor or industrial automation settings
High Performance Computing
-
Intel Core Ultra processors for responsive application performance
-
Support for up to 48 GB DDR5 memory via SO-DIMM slot
-
Onboard solid-state storage for fast access and reliability
-
Onboard TPM 2.0 for secure boot and platform protection
Display and Touch Support
-
Available in 15", 17" and 21.5" TFT-LCD sizes
-
Projected capacitive touch panel for a responsive and rugged human interface
-
High brightness panel options for outdoor readable applications
-
Wide viewing angles and clear, crisp graphics for control and information display
Power and Connectivity
-
Wide DC input from 9 V to 36 V for flexible power systems
-
M12-style rugged connector options for LAN, USB, COM and HDMI
-
Expansion slots, including M.2 for wireless modules or storage options
-
Optional SIM slot and LTE/5G support for remote connectivity
Rugged and Environmental Readiness
-
Operating temperature range suited to industrial and outdoor use
-
Shock and vibration-tolerant design for transport or heavy equipment integration
-
Supports VESA and yoke mounting for flexible installation
Dimensions Drawings
Download
More Information
| Brand | Aplex Technology Inc. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
NuTAM-915EP
15" XGA IP66/69K stainless steel panel pc, Intel Core Ultra 5/7, 1 x SO-DIMM
DDR5 slot, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input
with Adapter
NuTAM-915EPH
15" XGA High Brightness IP66/69K stainless steel panel pc, Intel Core Ultra 5/7,
1 x SO-DIMM DDR5 slot, 128GB TLC SSD, projected capacitive touch, 9~36V
DC power input with Adapter
