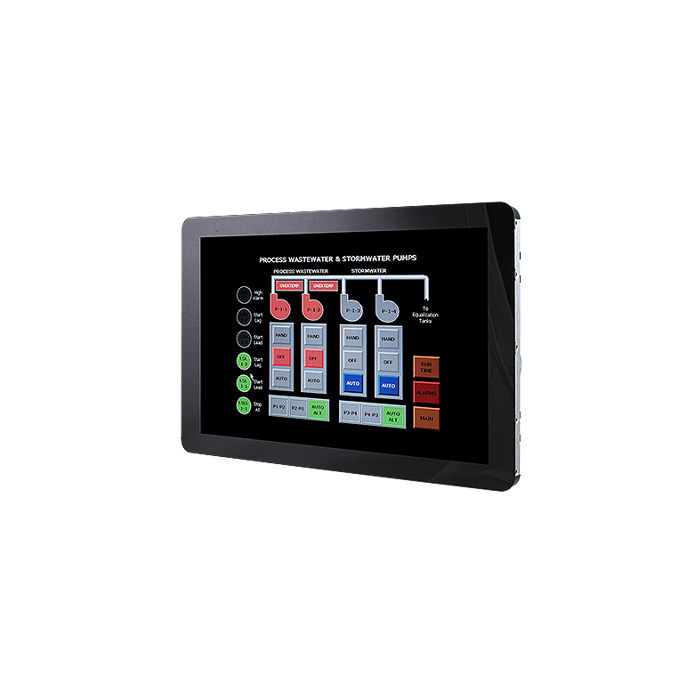

Shop OFT-07WR1 7" Open Frame Panel PC

End of Life

SKU: OFT-07WR1

This product is now end-of-life. Please see the new alternative here: OFT-07WR3

Datasheet

Description

10.1" Open Frame Tablet with RK3288

· RockChip RK3288W Cortex-A17 Quad Core 1.6GHz

· 2GB or 4G RAM

· 16GB or 32GB eMMC

· PCAP Touch

· 10/100/1000 Ethernet

· M.2 B-Key(3042) connector socket

· 802.11 b/g/n Wireless LAN and Bluetooth 4.0

· DC 12~24V Input

· Optional Powered LAN 802.3AT

· Optional 1000 nits / PCAP Touch with 3mm CG

· OS Image support Android 8.1 / Debian 9

· Battery Charger

· Note : You need a 19v or a 24v power adapter to fully charge the battery. You cannot fully charge the battery with a 12v power adapter.

Data Sheet

Brand

Avalue Technology Inc

Specifications

System
Processor	RockChip RK3288W Cortex-A17 Quad Core 1.6GHz
System Memory	2GB or 4GB DDR3L RAM

Storage
Storage	16GB or 32GB eMMC

I/O
External I/O Connector	1 x Power Jack 1 x HDMI Port 2 x USB Type A Host 1 x RJ45 1 x Headphone Jack 1 x Micro SD slot 1 x Reset
Internal I/O Connector	1 x Micro USB 1 x USB interface , 1 x DMIC interface 1 x USB touch interface 1 x M.2 B-Key(3042) 1 x touch button control(power/vol/brightness) 1 x Power interface (12~24V) 1 x Li-Battery connector 1 x JLVDS1 1 x JMIPI 1 x AMIC interface 1 x Speaker interface 1 x JSEN1 interface (I2C x2) 1 x JITP1 interface 1 x Debug port 1 x RS232 interface 1 x RS232 , RS485 1 x JGPIO1 (GPIO 16bit) 1 x RTC Battery interface 1 x Micro SIM Card socket for LTE module

Display
Multiple Display	LVDS+HDMI

Mechanical & Environmental
Power Requirement	DC 12~24V Input
Power Type	DC Jack, DC input 4pin header (Optional Powered LAN 802.3AT)
Operating Temperature	0°C ~ 40°C
Storage Temperature	-10°C ~ 60°C0
Operating Humidity	0% ~ 90% Relative Humidity, Non-condensing
Weight	1.18kg
Dimension (L x W x H)	252 x 166 x 38mm
