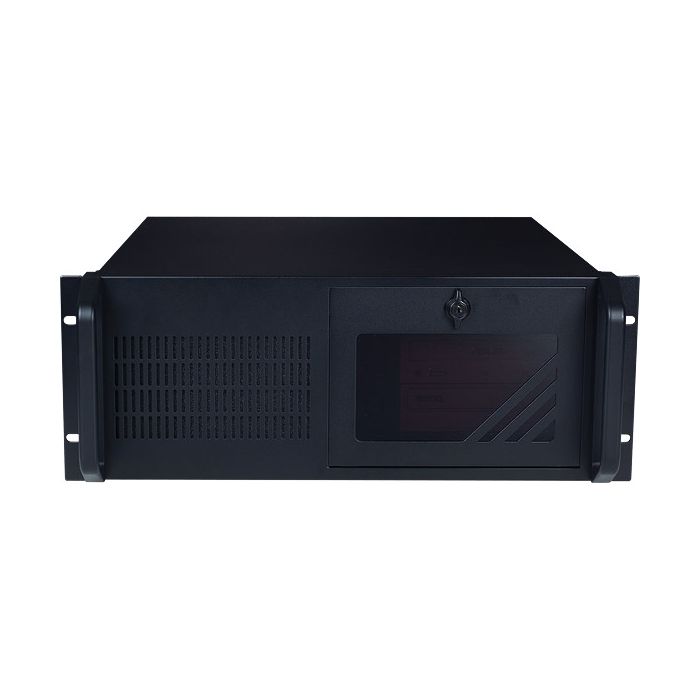

PBOX 440P

SKU: PBOX 440P

4U 14 Slots Full-sized PICMG 1.3 Rackmount Chassis

Datasheet

Description

4U 14 Slots Full-sized PICMG 1.3 Rackmount Chassis

· 19" Rackmount Industrial Chassis

· Supports 45nm/65nm Intel® Core™ 2 Quad & Core™ 2 Duo Processors with Greater Performance and Energy Efficiency

· Supports Three 5.25" and One 3.5 Disk Drives

· Front-accessible USB and PS/2 Ports

· Supports the following 14-slot Backplane: NBP14570BX: 7 PCI, 1 PCIe x16 and 4 PCIe x1; NBP14210: 10 PCI, 1 PCIe x16 and 1 PCIe x4

Product Data Sheet

Specifications

Main Board	SHB Express: PEAK 872VL2, PICMG 1.3 Full-Size, Intel® Q45 Chipset, LGA775 Core™ 2 Quad, Core™ 2 Duo support Max. 4GB DDR3 800/1066/1333 SDRAM, with VGA, Dual GbE LAN, PS2 outputSHB Express: PEAK 870VL2, PICMG 1.3 Full-Size, Intel® 945G Chipset, LGA775 Core™ 2 Duo support Max. 4GB DDR2 400 DIMM,with VGA, dual GbE, PS2 output
Backplane Option	NBP 14570-BX, 7 PCI slots; 4 PCIe x1/1 PCIe x16NBP 14210, 10 PCI slots; 1 PCIe x4 slots; 1 PCIe x16 slot
Physical Construction	Form Factor: 4U 19" rackmount industrial computing chassisConstruction: Heavy-Duty Cold Rolled Electroplated SteelColor: BlackDimensions (W x H x D): 483mm x 177mm x 451mm (19" x 7" x 17.8")Mounting: 2 x Rack Mount EarCooling System: 2 x 92 mm Ball Bearing FanWeight: 17Kgs (GW)
Indicator	Front panel Indicator: 1 x HDD status LED; 1 x Power LED
I/O Interface	Front panel external I/O: 1 x power on-off switch, 1 x power resetf switch, 2 x USB port, 1 x Keyboard Port
Storage Support	1 x 3.5" Drive Bay3 x 5.25" Drive Bay
Power Supply	Power type: ATX modeInput Voltage: 100-240 VACMax. Output Power: 400W (for PEAK870VL2)Power Supply Certifi cations: CE/FCC Class B/UL 60950/TUV EN60950
Environment	Operating temperature: 0°C to 40°C (32°F ~ 104°F)Operating Humidity: 10% ~ 90% (Non-condensing)Storage Temperature: -20°C ~ 60°C (-4°F ~ 140°F)Non-Operating Humidity: 10% ~ 95% @ 40 °C non-condensing
Certifications	CE approvalFCC Class A
