PBOX 460P

SKU: PBOX 460P

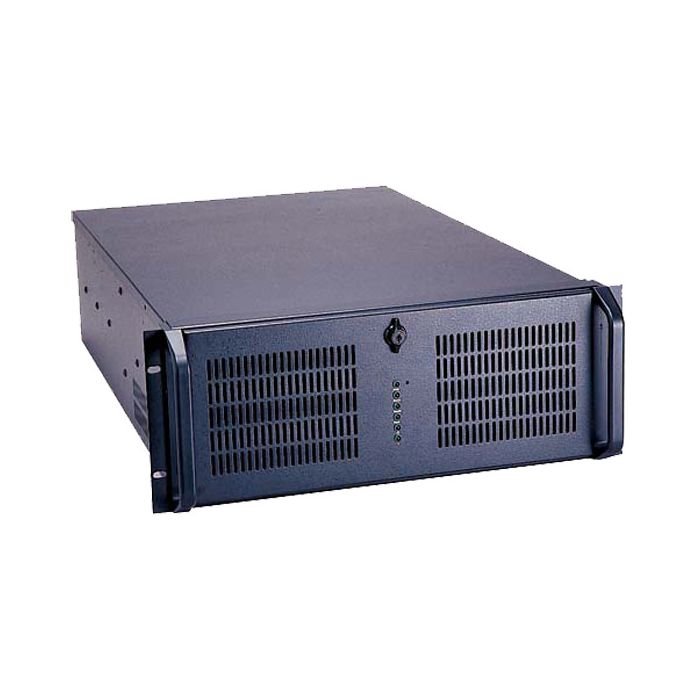

4U 14/20 Slots Full-sized PICMG 1.3 Rackmount Chassis

Datasheet

Description

U 14/20 Slots Full-sized PICMG 1.3 Rackmount Chassis

· 19" Rackmount Industrial Chassis

· Support Dual-core Intel® Xeon® Processor 5100 Series and Quadcore Intel® Xeon® Processor 5300 Series (80W)

· Supports Three 5.25” and One 3.5 Disk Drives

· Front-accessible USB and PS/2 Ports

· Supports the Following Backplane: NBP14111: 1 PCI, 1 PCIe X8 and 8 PCI-X (64-bit x 66MHz); NBP20016: 16 PCI-X (64-bit x 66MHz)

Product Data Sheet

Specifications

Main Board	SHB Express: PEAK 8920VL2 PICMG 1.3 full-size, support dual-core Xeon® LGA771 processor4 x 240-pin four channel DDR 2 FB-DIMM, support ECC/Register DDR2 memory up to 8GB2 x Intel® GbE, 1 x VGA, 4 x USB
Backplane Option	NBP 14111: 1 PCI, 1 PCIe X8 and 8 PCI-X (64-bit x 66MHz)NBP 20016: 16 PCI-X (64-bit x 66MHz)
Physical Construction	Form factor: 4U 19” rackmount industrial computing chassisConstruction: Heavy-duty cold rolled electroplated steelColor: blackDimensions (W x H x D): 483mm x 177mm x 671mm (19”x 7”x 26.5”)Mounting: 2x rack mount earCooling system: four 92x 92x 25mm ball bearing fanWeight: 24 Kgs (GW)
Indicator	Front panel Indicator: 1x HDD status LED; 1x power LED
I/O Interface	Front panel external I/O: 1 x power on-off switch, 1 x power reset switch
Storage Support	1 x 3.5" Drive Bay3 x 5.25" Drive Bay
Power Supply	Power type: ATX modeInput voltage: 100V-240V ACMax. output power: 500WPower supply certifications: CE/FCC, UL, TUV
Environment	Operating temperature: 0°C to 40°C (32°F to 104°F)Operating humidity: 10% to 90% (Non-condensing)Storage temperature: -20°C to 60°C (-4°F to 140°F)Non-operating humidity: 10% to 95% @ 40 °C non-condensing
Certifications	CE approvalFCC Class A
