PBOX 520A

In stock
SKU:
PBOX 520A
Brand: Nexcom

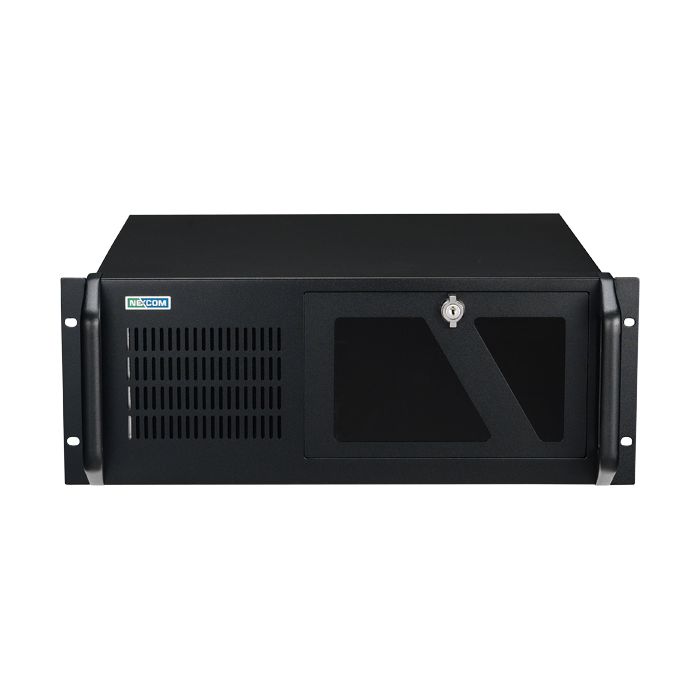

4U ATX Industrial Motherboard 19” Rackmount Chassis

Enquire Now

Please fill in your details below, we will get back to you as soon as possible

4U ATX Industrial Motherboard 19” Rackmount Chassis



·         19” Rackmount Industrial Chassis for ATX/ Micro-ATX industrial Motherboards

·         Shockproof disk bay design hold up three 5.25” and one x 3.5” device bays

·         Adjustable height of Hold-down clamp design for add-in cards protected shock and vibration

·         Power and HDD LEDs improve system availability

·         Front accessible air-filter for dust and easy maintenance

·         Key-Lockable front door to avoid unauthorized access

·         Thermal design with dual cooling fans in front and extra dual cooling fans in the rear windows

·         Standard ATX 400W, active PFC F3, full-range +100~240VAC input

Construction 4U, 19” Rackmount, heavy-duty steel chassis with color black
Devices Bay Front Accessible three 5.25” and one 3.5” device Bays
Cooling Fans Two front-filtered cooling fans: 80x 80x 25mm, 41 CFM/ 33dBA/ 3200 RPM eachTwo rear-windows cooling fans : 60x 60x 25mm, 23.5 CFM/ 33.5dBA/ 4500 RPM each
Front Panel LEDs indication: one Power LED and one HDD status LEDControl: one Power On/ Off Switch and one Power Reset Bottom
Environment Temperature
- Operating: 0°C ~ 40°C (32 ~ 104°F)
- Non- Operating: -20°C ~ 60°C (-4 ~ 140°F)
Humidity
- Operating: 10 ~ 85% @ 40°C, non-condensing
- Non- Operating: 10 ~ 95% @ 40°C, non-condensing
Vibration (5~500Hz)
- Operating: 0.5 Grms (w/ HDD)
- Non-Operating: 2 G (sin wave)
Shock
- Operating: 10 G (with 11ms duration, half sin wave)
- Non- Operating: 30 G
Power Supply Power Type: ATX mode, 80plusInput Voltage: +100V~240VAC, Full RangeMax. Output Power 400W, active PFC F3Power Supply Certification: CE, FCC, CCC and TUV
Dimension 482mm (W) x 450mm (D) x 177mm (H)
(19” x 17.8”x 7”, 1U= 1.75” height)



We build to order
