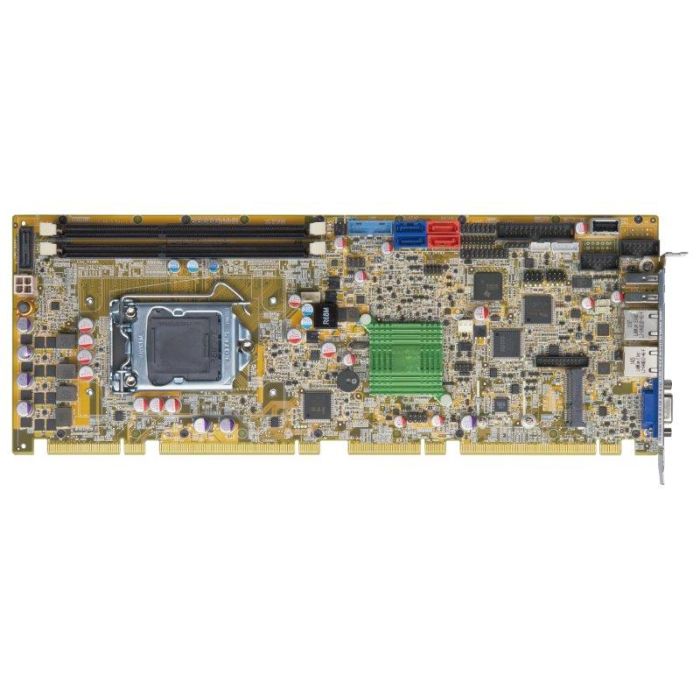

PCIE-H810 Full-size PICMG i7/i5/i3/Pentium/Celeron

In stock
SKU:
PCIE-H810-R10
Brand: IEI Integration Corp.

Category: Single Board Computers

Full-size PICMG 1.3 CPU card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® with Intel® H81


Enquire Now
Enquire about this product:

Full-size PICMG 1.3 CPU card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® with Intel® H81



·         PICMG 1.3 full-size solution

·         4th generation LGA 1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported

·         Two 1600/1333 MHz DDR3 SDRAM DIMMs support up to 16 GB

·         Dual Realtek PCIe GbE supported

·         TPM v1.2 hardware security function supported by TPM module

·         IEI One Key Recovery solution allows you to create raipd OS backup and recovery

·         Stiffener bars

·         IEI jumper-less function




This product is listed in Industrial Automation, Gaming, Mining, Medical, IEI Integration Corp., Embedded Boards
Spec Item Description
CPU Cooler
CPU Cooler CF-1150SB-R11
CF-1150SC-R20
CF-1150SE-R10
CF-1150SF-R10
Environment
Humidity 5% ~ 95%, non-condensing
Operating Temperature -20°C ~ 60°C
Expansion Slots
Expansion Slots 1 x PCIe Mini slot (PCIe Mini & mSATA colay)
One PCIe x16 & four PCIe x1 signal via golden finger
PCI signal by ITE IT 8892 (PCIe to PCI bridge)
I/O Interface
Audio Support 7.1-channel HD Audio by IEI AC-KIT-892HD kit
Digital I/O 1 x 8-bit digital I/O (2x5 pin)
Display Dual independent display
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
Ethernet Dual Realtek RTL8111E PCIe GbE controllers supported
I/O Interface
I/O Interface 2 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x Internal USB 3.0
1 x LPT
2 x USB 2.0
Power
Power consumption [email protected], [email protected], [email protected], [email protected], [email protected]
(Intel® Core™ i7-4770K 3.90 GHz CPU with 8 GB (two 4 GB) 1333 MHz DDR3 memory)
Storage
Storage 2 x SATA 6Gb/s
2 x SATA 3Gb/s (H81 supports AHCI, no RAID)
System
Chipset Intel® H81
CPU 4th generation LGA 1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
CPU Socket LGA1150
Memory Max. Two 240-pin 1600/1333 MHz dual-channel unbuffered DDR3 & DDR3L SDRAM DIMMs
support up to 16 GB
Watchdog Timer
Watchdog Timer Software programmable supports 1~255 sec. system reset
