PCISA-BT Half-size PCISA Atom
Half-size PCISA CPU Card supports Intel® 22nm Atom™ On-board SoC with VGA
Enquire Now
Enquire about this product:

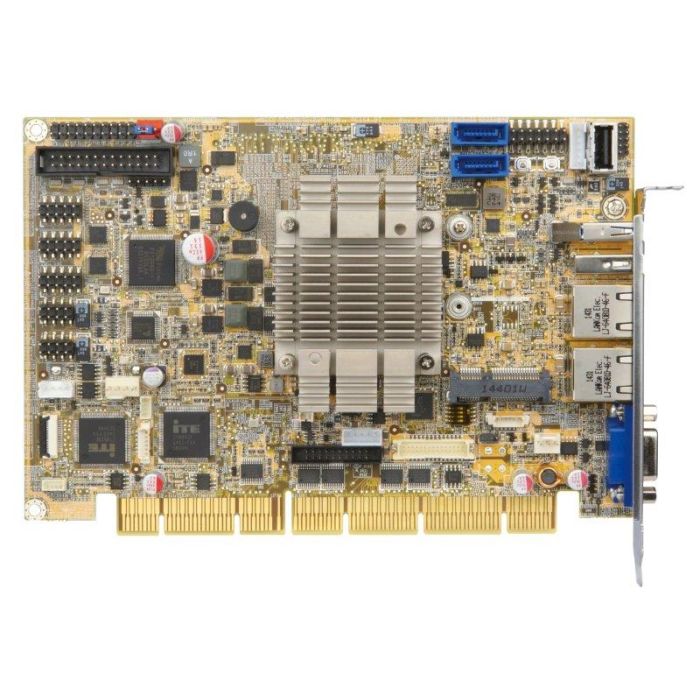

Half-size PCISA CPU Card supports Intel® 22nm Atom™ On-board SoC with VGA
· Half-size PCISA CPU card supports Intel® 22nm Atom™ or Celeron® on-board SoC
· Supports dual LAN by Intel® I211-AT PCIe controllers
· Supports 1.35 V 1333/1066 MHz DDR3L SDRAM up to 8 GB
· Supports dual independent display with one analog CRT, iDP and one 24-bit dualchannel LVDS (optional)
· COM, USB 3.0, SATA 3Gb/s, PCIe Mini, mSATA and HD Audio support
· IEI One Key Recovery solution allows you to create rapid OS backup and recovery
| Spec Item | Description |
|---|---|
| Environment | |
| Humidity | N/A |
| Operating Temperature | -20°C ~ 60°C |
| Expansion Slots | |
| Expansion Slots | 1 x microSD socket 1 x PCIe Mini slot PCIe-PCI bridge: ITE8892E LPC-ISA bridge: F85226FG PCI and ISA signal via golden finger |
| I/O Interface | |
| Audio | Support 7.1 channel HD audio by IEI AC-KIT-892HD kit 1 x Analog audio (2x5 pin) |
| Digital I/O | 1 x 8-bit digital I/O (2x5 pin) |
| Display | Dual independent display VGA (up to 2560x1600@60Hz) 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz) |
| Ethernet | LAN1: Intel® I211-AT PCIe controller LAN2: Intel® I211-AT PCIe controller |
| I/O Interface | |
| I/O Interface | 1 x I²C |
| 2 x Internal RS-232 | |
| 1 x Internal RS-422/485 | |
| 5 x Internal USB 2.0 | |
| 1 x KB/MS | |
| 2 x LAN LED | |
| 1 x LPT | |
| 1 x SMBus | |
| 1 x USB 2.0 | |
| 1 x USB 3.0 | |
| 1 x VGA | |
| Power | |
| Power consumption | [email protected],[email protected] (Intel® Atom™ E3845 1.91GHz CPU with one 8GB 1333MHz memory) |
| Storage | |
| Storage | 1 x mSATA (SATA 3Gb/s, shares with SATA1) 2 x SATA 3Gb/s |
| System | |
| CPU | Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W) |
| CPU Socket | On Board |
| Memory Max. | One 204-pin 1066/1333MHz single-channel DDR3L SDRAM unbuffered DIMM (system max. 8GB) |
| Watchdog Timer | |
| Watchdog Timer | Software programmable supports 1~255 sec. system reset |
