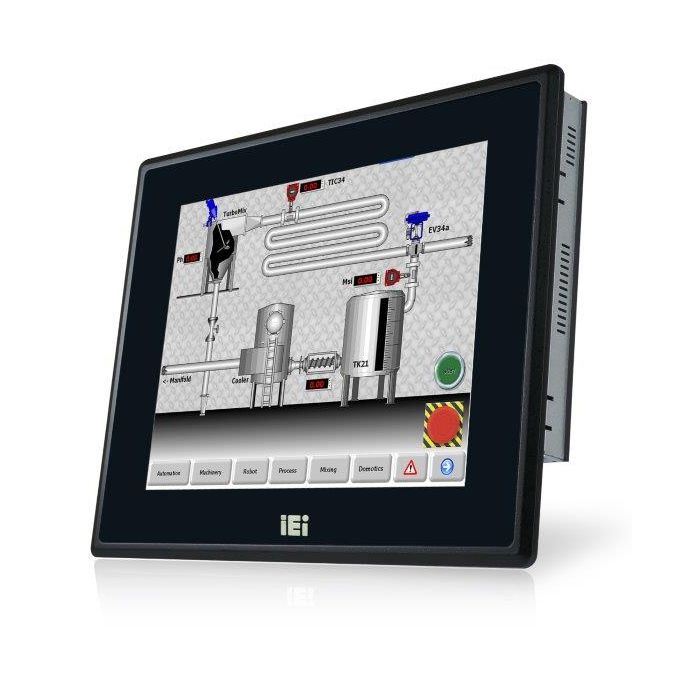

Shop PPC-F12B-BT 12" XGA Atom Panel PC

End of Life

SKU: PPC-F12B-BTi-J1/2G/xx-R12

This product is now end of life and may no longer be available. Please see its direct replacement here: PPC2-C12-EHL 12” Fanless Panel PC IP65 Front

Datasheet

Description

12.1" 600 cd/m2 XGA Panel PC with IntelR CeleronR Processor J1900

● Support IEI iRIS-2400 remote intelligent solution

● Intel® Celeron® J1900 quad-core SoC

● Robust IP65 aluminum front bezel

● Aesthetic ultra-thin bezel for seamless panel mount installation

● Projected capacitive multi-touch and resistive single touch options

● Dual full-size PCIe Mini card expansion

● 9V~36V DC wide range DC input

Product Data Sheet

User Manual

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Display
Backlight MTBF(hrs)	50000
Brightness(cd/m2)	600
Contrast Ratio	700:1
LCD Size	12.1""(4:3)
Max Resolution	1024 (W) x 768 (H)
Environment
Humidity	10% to 95% (non-condensing)
IP Level	IP 65 compliant front panel
Operating Temperature	-10°C~50°C (14°F~122°F)
Storage Temperature	-20°C~60°C (-4°F~140°F)
I/O Interface
I/O Ports and Switches	2 x RJ-45 LAN Port 2 x USB 3.0 2 x USB 2.0 1 x HDMI output 2 x RS-232 1 x RS-232/RS-422/485 1 x VGA 1 x 9 V~36 V DC jack (4-pin) 1 x 9 V~36 V DC terminal block 1 x Line-out (PPC-F15B and PPC-17B only) 1 x Power switch
LCD
LCD Color	16.2M
Pixel Pitch (mm)	0.24 x 0.24
Viewing Angle (H-V)	160° / 140°
Physical Characteristics
Cutout Dimensions	244.8 x 304.8
Dimensions (LxWxH) (mm)	262.2 x 322.2 x 47.2
Power
Power adapter	9V~36V DC
Touch
Touch Controller	5-wire resistive single-touch type flat touchscreen 3H
Touch Screen	2-point projected capacitive type touchscreen 6H
Weight
Weight	3.2 kg
