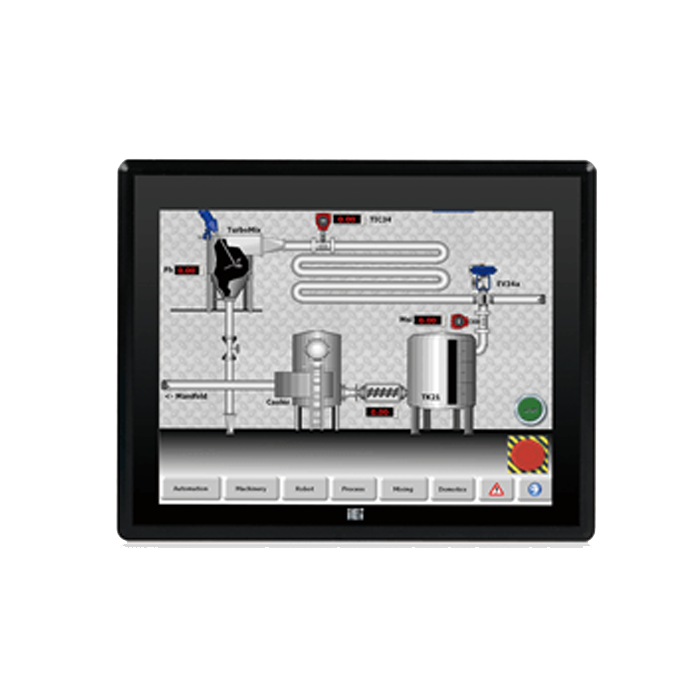

17"-350-cd/m²-SXGA-Panel-PC-with-Intel®-H81-chipset,-Intel®-Pentium®-Processor-G3420,-Core-i3-Dual-Core-i3-4330-Processor-or-Core-i5-Quad-Core-i5-4570S-Processor

End of Life

SKU: PPC-F17AA-H81i-xx/4G/R-R15

17" 350 cd/m² SXGA Panel PC with Intel® H81 chipset, Intel® Pentium® Processor G3420, Core i3 Dual Core i3-4330 Processor or Core i5 Quad Core i5-4570S Processor

Datasheet

Description

17" 350 cd/m² SXGA Panel PC with Intel® H81 chipset, Intel® Pentium® Processor G3420, Core i3 Dual Core i3-4330 Processor or Core i5 Quad Core i5-4570S Processor

● Support IEI iRIS-2400 IEI remote intelligent solution

● Scalable Intel® H81 chipset supports LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor with up to 65W TDP

● Robust IP65 aluminum front bezel

● Aesthetic ultra-thin bezel for seamless panel mount installation

● Projected capacitive multi-touch

● Dual full-size PCIe Mini card expansion

● AC/DC power input options (DC model by build to order manufacturing)

Download

Product Data Sheet

User Manual

More Information

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Display
Backlight MTBF(hrs)	50000
Brightness(cd/m2)	350
Contrast Ratio	800:1
LCD Size	17”(5:4)
Max Resolution	1280 (W) x 1024 (H)
Environment
Humidity	10% to 95% (non-condensing)
IP Level	IP 65 compliant front panel
Operating Temperature	-10°C~50°C (14°F~122°F)
Storage Temperature	-20°C~60°C (-4°F~140°F)
I/O Interface
I/O Ports and Switches	2 x RJ-45 LAN Port 2 x USB 3.0 4 x USB 2.0 1 x HDMI output 4 x RS-232 1 x RS-422/485 1 x VGA output 1 x AC/DC power plug (DC model is by build to order manufacturing) 1 x AT/ATX switch 1 x Clear CMOS 1 x Reset button 1 x Power switch
LCD
LCD Color	16.7M
Pixel Pitch (mm)	0.26 x 0.26
Viewing Angle (H-V)	170° / 160°
Physical Characteristics
Cutout Dimensions	323 x 390
Dimensions (LxWxH) (mm)	341.4 x 408.4 x 73.8
Power
Power Supply	AC input ATX power supply 220W power supply Input: 90VAC-264VAC, 50/60Hz Output (max.): 3.3V@10A, 5V@14A, 12V@14A, [email protected]
Touch
Touch Controller	5-wire resistive type single touch window (Penmount 6000), 3H
Touch Screen	2-point projected capacitive touch window (EETI EXC7200), 6H
Weight
Weight	7.5/10.7 (kg)
