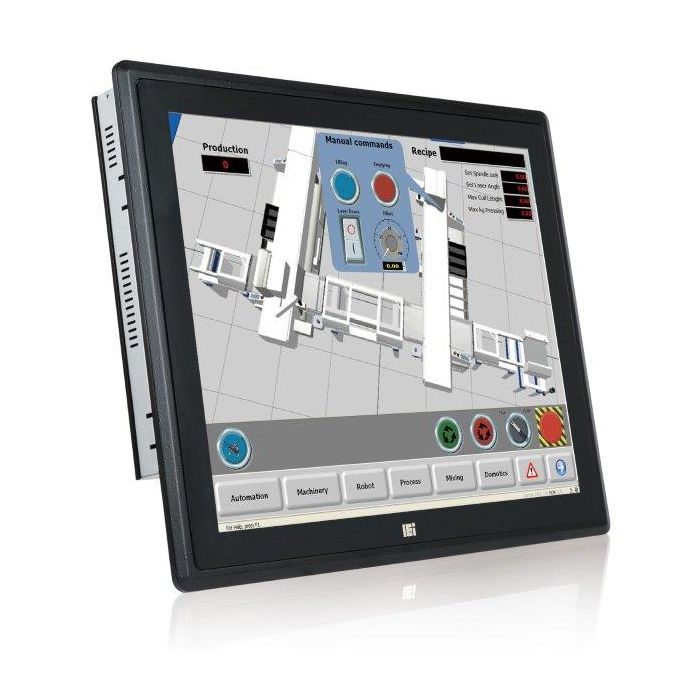

Shop PPC-F17B-BTi 17" SXGA Panel PC

End of Life

SKU: PPC-F17B-BTi-J1/2G/R-R13

17" 350 cd/m2 SXGA Panel PC with Intel Celeron Processor J1900

Datasheet

Description

17" 350 cd/m2 SXGA Panel PC with Intel Celeron Processor J1900

● Support IEI iRIS-2400 remote intelligent solution

● Intel® Celeron® J1900 quad-core SoC

● Robust IP65 aluminum front bezel

● Aesthetic ultra-thin bezel for seamless panel mount installation

● Projected capacitive multi-touch and resistive single touch options

● Dual full-size PCIe Mini card expansion

● 9V~36V DC wide range DC input

Product Data Sheet

User Manual

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Display
Backlight MTBF(hrs)	50000
Brightness(cd/m2)	350
Contrast Ratio	800:1
LCD Size	17""(5:4)
Max Resolution	1280 (W) x 1024 (H)
Environment
Humidity	10% to 95% (non-condensing)
IP Level	IP 65 compliant front panel
Operating Temperature	-10°C~50°C (14°F~122°F)
Storage Temperature	-20°C~60°C (-4°F~140°F)
I/O Interface
I/O Ports and Switches	2 x RJ-45 LAN Port 2 x USB 3.0 2 x USB 2.0 1 x HDMI output 2 x RS-232 1 x RS-232/RS-422/485 1 x VGA 1 x 9 V~36 V DC jack (4-pin) 1 x 9 V~36 V DC terminal block 1 x Line-out (PPC-F15B and PPC-17B only) 1 x Power switch
LCD
LCD Color	16.7M
Pixel Pitch (mm)	0.26 x 0.26
Viewing Angle (H-V)	170° / 160°
Physical Characteristics
Cutout Dimensions	323 x 390
Dimensions (LxWxH) (mm)	341.4 x 408.4 x 51.8
Power
Power adapter	9V~36V DC
Touch
Touch Controller	5-wire resistive single-touch type flat touchscreen 3H
Touch Screen	2-point projected capacitive type touchscreen 6H
Weight
Weight	5 kg
