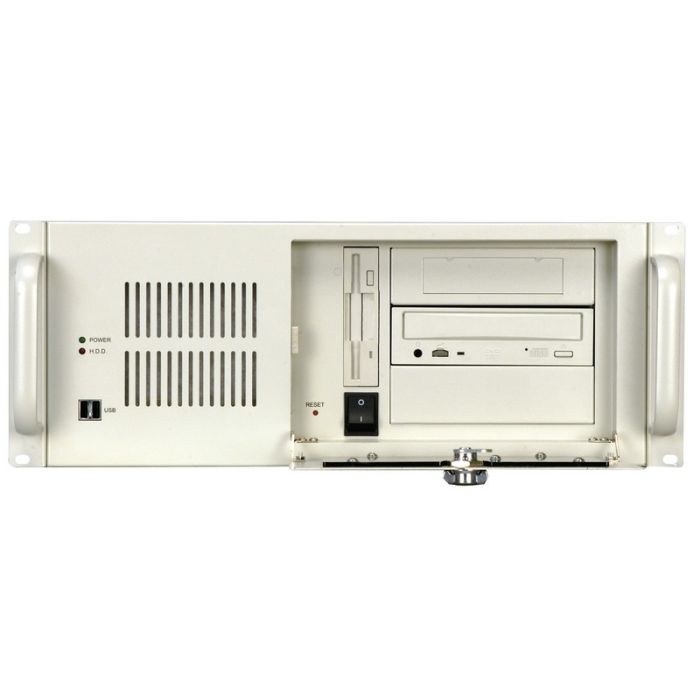

RACK-360G

SKU: RACK-360G

4U 14-slot Full-size Rackmount Chassis

Datasheet

Description

4U 14-slot Full-size Rackmount Chassis

· Cost-effective, RoHS compatible design

· Flexible drive combinations

· Two USB ports on the front panel

· 12 cm cooling fan with replaceable fan filter

· Lockable door prevents unauthorized access

Product Data Sheet

Specifications

Spec Item	Description
Form factor
SBC Form Factor	Full-size, slot CPU card
I/O Interface
I/O Openings	2 x COM, 2 x LPT
I/O Ports	2 x USB
Expansion Slots
Expansion Slots	14 slots for RACK-360G 7 slots for RACK-360GATX
System
Cooling method / System Fan	1 x 12 cm
Drive Bays	3 x 5.25” + 1 x 3.5” HDD or 2 x 5.25” + 2 x 3.5” HDD or 2 x 5.25” + 1 x 3.5” HDD + 1 x front accessible 3.5” or 2 x 5.25” + 2 x front accessible 3.5”
Indicator&Buttons
Buttons	Power switch, reset button
Indicators	Power, HDD
Physical Characteristics
Construction	Heavy duty metal
Color
Color	B: Black/W: White
Dimensions
Dimensions	435.5 mm x 431mm x 176 mm
Weight
Weight	11 kg/15.4 kg(Net/Gross)
Environment
Operating Temperature	0°C ~ 50°C
Humidity	10% ~ 90%
