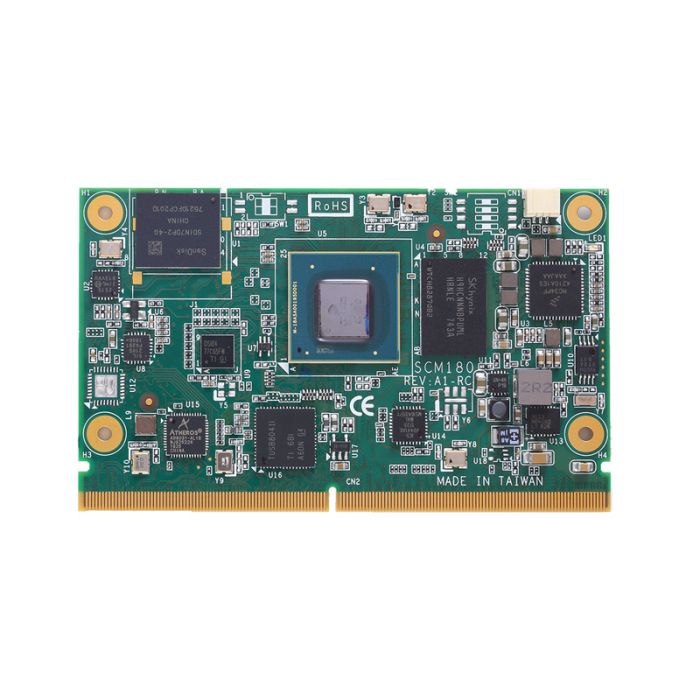

SCM180 Ultra Small SMARC v2.0 SOM i.MX 8M Multi-Core CPU

End of Life
SKU: SCM180

SMARC v2.0 SoM with i.MX8M Quad/Dual 1.3 GHz (Industrial) SoC, 1GB/2GB Memory, 8GB eMMC, CAN, MIPI CSI/DSI, HDMI 2.0

Datasheet

Description

SMARC v2.0 SoM with i.MX8M Quad/Dual 1.3 GHz (Industrial) SoC, 1GB/2GB Memory, 8GB eMMC, CAN, MIPI CSI/DSI, HDMI 2.0

  • SMARC 2.0 (82 x 50 mm)
  • Ultra-Low Power i.MX8M Dual/Quad A53 Core
  • Single M4 Core
  • HDMI 2.0a up to 4K
  • MIPI DSI or Dual Channel LVDS
  • MIPI CSI
  • 10/100/1000 Mbps Ethernet
  • USB3.0, USB OTG,
  • PCIe 2.0
  • CAN 2.0B
  • Audio

Download

Datasheet

More Information

Brand Axiomtek
Specifications
CPU
  • Freescale i.MX8M series SoC with Quad/Dual A53
Chipset
  • SoC integrated
System Memory
  • Onboard LPDDR4 1GB 3200Mbps, up to 4GB
OS
  • Linux Kernel, Android
COM
  • 2 x COM with TX/RX/RTS/CTS
  • 2 x RX/TX (1 x Debug Console)
USB
  • 1 x USB 2.0
  • 1 x OTG client
  • 2 x USB 3.0
Ethernet
  • 1 x 10/100/1000 Mbps
Display
  • 1 x HDMI 2.0; or DP 1.3
CAN
  • 2 x CAN 2.0B
I2C
  • 3 x I2C interface
SPI
  • 1 x QSPI with 2 Chip Select
  • 1 x SPI with 2 Chip Select
GPIO
  • Up to 12
Audio
  • 1 x I2S
Storage
  • Onboard eMMC 8GB, up to 64GB; or SD Card
Expansion
  • N/A
Others
  • N/A
Battery
  • Battery on the Baseboard is required
Power Input
  • N/A
Operating Temperature
  • 0°C to +85°C (32°F to +185°F) (Commercial)
  • -40°C to +85°C (-40°F to +185°F) (Industrial)
Relative Humidity
  • N/A
Dimensions
  • 82 x 50 mm
Board Thickness
  • 1.2 mm ± 0.1 mm
Certifications
  • CE
