Shop uIBX-250-BW Ultra Compact Size PC

End of Life

SKU: uIBX-250-BW-N3/2G-R21

Std build - Fanless Celeron® N3160, 4GB RAM, 128GB Wide Temp SSD, Win 10 IOT pre-loaded
Contact for other builds/configs.

Datasheet

Description

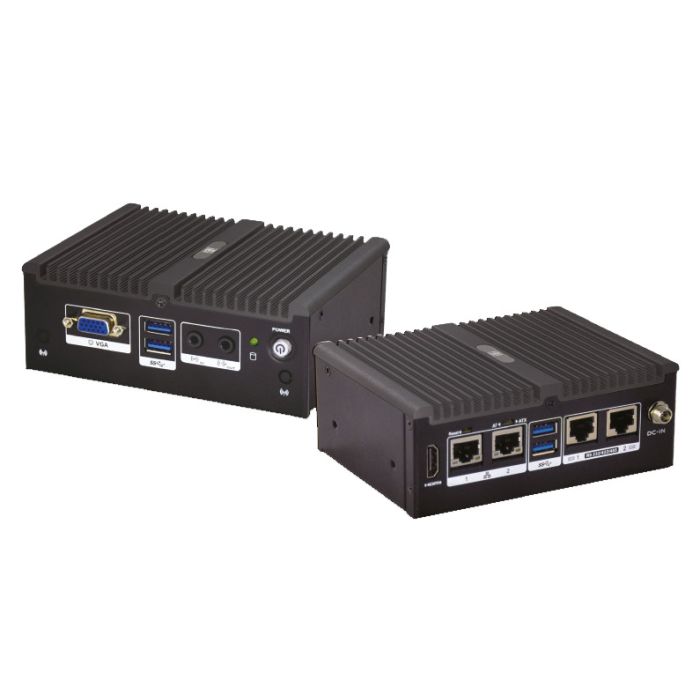

The uIBX-250-BW Embedded System is a Fanless PC based on Intel® Celeron® N3160 processor pre-installed and supports one 204-pin DDR3L 1.35 V SO-DIMM module up to 8 GB (pre-installed 2 GB) with one VGA port and one HDMI for dual display.

This Embedded System supports a 2.5” SATA SSD/HDD. Two RS-232/422/485 serial ports and four USB 3.0 ports ensure simplified connectivity to a variety of external peripheral devices.

KEY FEATURES:

Fanless System with Intel® Celeron® N3160 Processor
Dual Display
Two RS-232/422/485
Full-Size PCIe Mini-Slot for Expansion
Four USB 3.2 Gen 1 (5Gb/s) ports
Two GbE LAN Ports

Download

Product Data Sheet

User Manual

More Information

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Form factor
SBC Form Factor	CPU:Intel® Celeron® N3160 (up to 2.24 GHz, quad-core, 2 MB cache, TDP=6W) Chipset:SoC System Memory:1 x 204-pin DDR3L 1.35 V SO-DIMM (system max: 8 GB) Pre-installed 2 GB
I/O Interface
I/O Ports	4 x USB 3.0 Ethernet: 2 x RJ-45 PCIe GbE by Intel® I211 controller 2 x RJ-45 RS-232/422/485 1 x HDMI, 1 x VGA 1 x Line-out, 1 x Line-in
Expansion Slots
Expansion Slots	1 x Full-size PCIe Mini card (support mSATA, colay with SATA) uIBX-250-BW-QGW-R20 has no PCIe mini slot
System
Cooling method / System Fan	Fanless
Drive Bays	1 x 2.5' SATA 6Gb/s HDD/SSD drive bay
Indicator&Buttons
Buttons	1 x Power button, 1 x AT/ATX switch
Indicators	HDD
Color
Color	Black
Dimensions
Dimensions	136.6 x 102.4 x 52
Weight
Weight	470 g/1.4 kg
Environment
Operating Temperature	-20°C ~ 60°C with air flow
Humidity	10% ~ 95%, non-condensing
