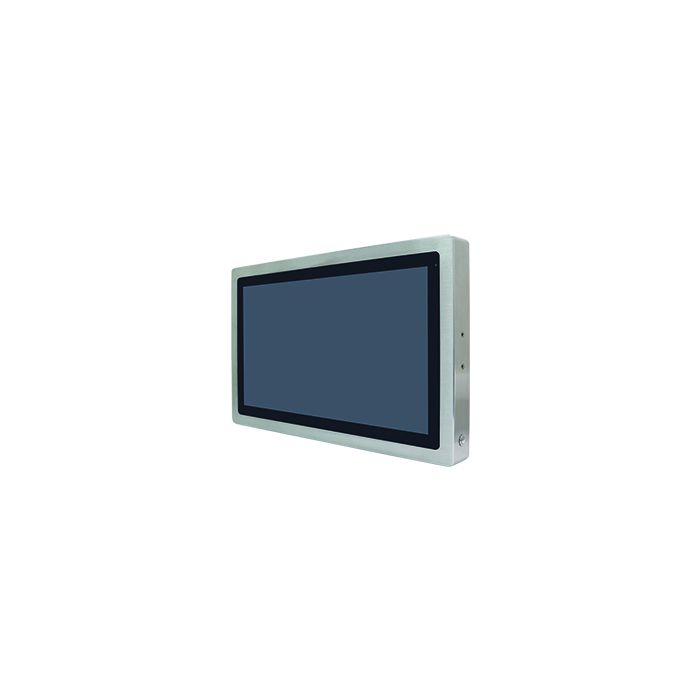

ViTAM-810 10.1" IP66/IP69K Stainless Panel PC

System

CPUOnboard Intel Celeron N2930(1.83GHz) Processor

System ChipsetSoC

System MemoryOnboard 4GB DDR3L SDRAM , up to 8GB(option)

Power Consumption17W

USB1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain

Serial / Parallel1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain

LAN1 x M12 8-pin for LAN with waterproof cover and chain(POE for option)

Power1 x M12 3-pin for DC power with waterproof cover and chain / 1 x Power switch on the side / 1 x Touch on/off button on the side

Storage Space

HDD/SSD1 x 2.5" SATA3 HDD

Expansion

Expansion slot1 x MiniPCIe slot for WIFI/BT(optional), 4G/LTE(optional)

Display

LCD Size10.1" TFT-LCD

Max. resolution1280 x 800

Max. color16.7M

Luminance(cd/m²)350

Viewangle(H°/V°)170/170

Contrast800:1

Backlight lifetime(hrs)25000

Power

Power inputDC 9~36V

Mechanical

Construction304 Stainless steel chassis(default), 316 Stainless steel chassis(optional)

IP ratingIP66 / IP69K

MountingVESA 75 x 75, Yoke mount

Dimension(mm)300 x 220 x 53

Net weight(Kgs)3.9 Kg

Environment

Operating temperature(°C)0~50°C

Storage temperature(°C)-30~70°C

Storage humidity10 to 90% @ 40°C, non- condensing

CertificationCE / FCC CLASS A

Operating System SupportWEC 7, Windows Embedded 7, Windows Embedded 8.1, Windows 10 IoT ENT LTSB
