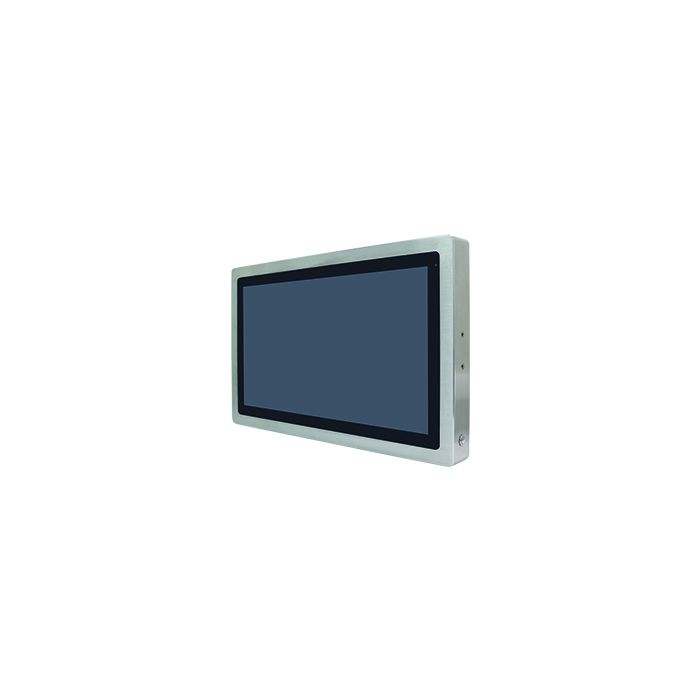

ViTAM-812 12.1" IP66/IP69K Stainless Panel PC

In stock
ViTAM-812 P/R/P/G/H/WT
Brand: Aplex Technology Inc.

12.1" New Gen. IP66/IP69K Stainless Steel Panel PC

Enquire Now
Enquire about this product:

12.1" New Gen. IP66/IP69K Stainless Steel Panel PC

·         12.1" TFT-LCD Projected Capacitive Touch.

·         Intel Celeron N2930 1.83GHz Onboard Processor.

·         True Flat Front Bezel and Grade 304 Stainless Steel Enclosure (Grade 316 for Option).

·         IP66/IP69K Rated with M12 Connectors.

·         Touch on/off Button on the Side Edge for Hygienic Cleaning.

This product is listed in Industrial Automation



CPUOnboard Intel Celeron N2930(1.83GHz) Processor

System ChipsetSoC

System MemoryOnboard 4GB DDR3L SDRAM , up to 8GB(option)

Power Consumption 21W

USB1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain

Serial / Parallel1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain

LAN1 x M12 8-pin for LAN with waterproof cover and chain

Power1 x M12 3-pin for DC power with waterproof cover and chain / 1 x Power switch on the side / 1 x Touch on/off button on the side

Storage Space





Expansion slot1 x MiniPCIe slot for WIFI/BT(optional), 4G/LTE(optional)



LCD Size12.1" TFT-LCD

Max. resolution800 x 600, 1024 x 768 (optional)

Max. color262K, 16.2M (optional)

Luminance(cd/m²)450, 500 (optional)

Viewangle(H°/V°)160/150, 160/140 (optional)

Contrast800:1 / 700:1 (optional)

Backlight lifetime(hrs)50000, 30000 (optional)

Touch Screen(Option)


Touch TypeProjected Capacitive Touch


Light transmission(%)Over 90%



Power inputDC 9~36V



Construction304 Stainless steel chassis(default), 316 Stainless steel chassis(optional)

IP ratingIP66 / IP69K

MountingVESA 75 x 75, Yoke mount

Dimension(mm)335 x 265 x 53

Net weight(Kgs)5.3 Kg



Operating temperature(°C)0~50°C

Storage temperature(°C)-30~70°C

Storage humidity10 to 90% @ 40°C, non- condensing

CertificationCE / FCC CLASS A

Operating System SupportWEC 7, Windows Embedded 7, Windows Embedded 8.1, Windows 10 IoT ENT LTSB
