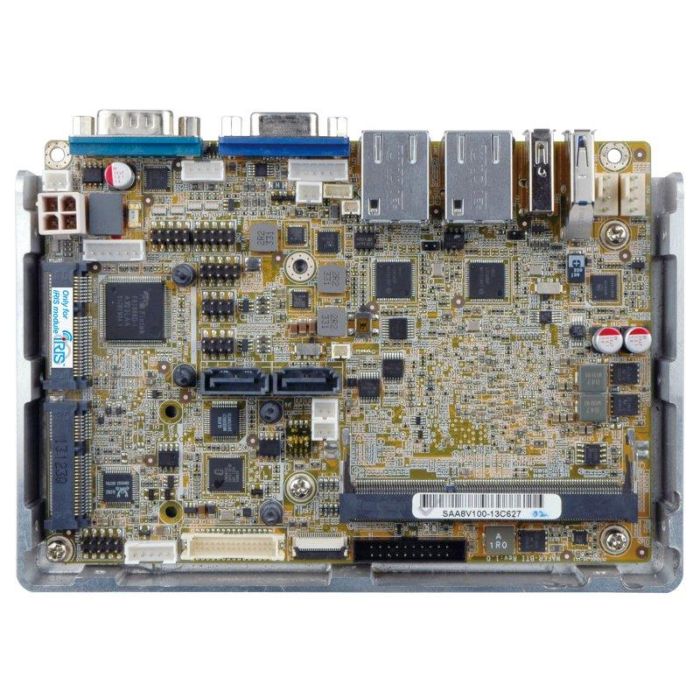

WAFER-BT-i1 3.5” SBC Atom/Celeron on-board SoC

_CPU

_{Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)}

_{Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)}

_{Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)}

_{Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)}

_{Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)}

_{Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)}

_{Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W)}

_{Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)}

_BIOS

_{AMI UEFI BIOS}

_{BIOS version: AIxx is for Bay-trail I model (CPU: E38xx)}

_{BIOS version: AMxx is for Bay-trail M/D model (CPU: J1900/ N2930/ N2807)}

_{System Memory}

_{One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM supports up to 8GB (J1900, N2930, E3845, E3827, E3826) or 4GB (N2807, E3825, E3815)}

_Ethernet

_{LAN1: Intel® I210-AT PCIe controller with NCSI support}

_{LAN2: Intel® I211-AT PCIe controller}

_{I/O Interface}

_{1 x PS/2 KB/MS}

_{2 x SATA 3Gb/s with 5V SATA power connector (no RAID)}

_{1 x USB 3.0 (on rear I/O)}

_{5 x USB 2.0 (1 on rear I/O, 4 by pin header)}

_{1 x RS-422/485 (by pin header)}

_{3 x RS-232 (1 on rear I/O, 2 by pin header)}

_{Digital I/O}

_{8-bit digital I/O (4-bit input, 4-bit output)}

_{Super I/O}

_{Fintek F81866}

_SMBus

_{1 x 4-pin (1x4) wafer}

_Audio

_{Realtek ALC662 HD codec}

_{1 x Analog audio by 10-pin (2x5) header}

_{Display Interfaces}

_{Dual Independent Display}

_{1 x VGA (Resolution: 2560x1600@60Hz)}

_{1 x 24-bit dual-channel LVDS connector (1920x1200@60Hz)}

_{1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)}

_Expansion

_{1 x Full-size PCIe Mini card slot with mSATA support (SATA2 and mSATA share SATA signal)}

_{Watchdog Timer}

_{Software programmable, supports 1~255 sec. system reset}

_{Power Supply}

_{12V DC input only (AT/ATX support)}

_{Power Consumption}

_{[email protected] (Intel® Celeron® J1900 CPU, 1 x 8GB 1333 MHz DDR3 memory)}

_Graphic

_{Intel® HD Graphics Gen 7 Engines with 4 execution unit, supports DX11.1, OpenGL 4.2 and OpenCL1.2}

_{Operating Temperature}

_{-20°C ~ 60°C}

_{Storage Temperature}

_{-30°C ~ 70°C}

_Humidity

_{5% ~ 95%, non-condensing}

_Dimensions

_{146mm x 102mm}

_Weight

_{GW:600g / NW:250g}

_{Embedded Controller}

_{ITE IT8528E}

_{Front Panel}

_{1 x 6-pin wafer for power LED & HDD LED}

_{1 x 2-pin wafer for power button}

_{1 x 2-pin wafer for power reset}

_{Fan Connector}

_{1 x 4-pin CPU fan connector}

_{1 x 4-pin system fan connector}

_{iRIS Remote Management Module}

_{1 x iRIS-1010 slot}

_{LAN LED}

_{2 x 2-pin (1x2) header}
