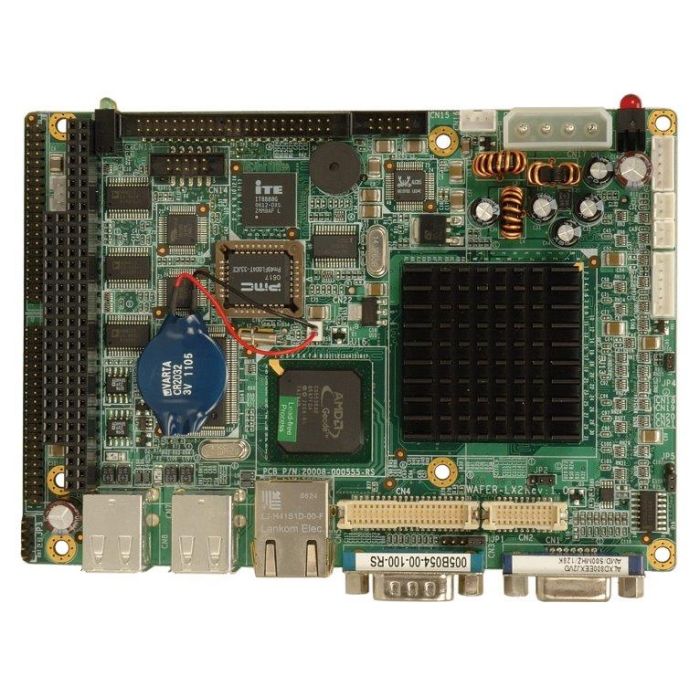

WAFER-LX2-800 3.5� SBC AMD Geode LX 800

End of Life

SKU: WAFER-LX2-800-R12

3.5” SBC with on-board AMD Geode™ LX 800 Processor

Datasheet

Description

3.5” SBC with on-board AMD Geode™ LX 800 Processor

· 3.5"" form factor with AMD Geode™ LX 800 CPU

· One 333/400 MHz DDR SO-DIMM socket supports up to 1 GB memory

· VGA, 24-bit TTL, 18-bit LVDS display interfaces

· Seven RS-232 and one RS-232/422/485

· IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Product Data Sheet

User Manual

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
CPU Cooler
CPU Cooler	N/A
Display
Display	VGA integrated in AMD Geode™ LX 800 24-bit TTL 18-bit single-channel LVDS
Environment
Humidity	5% ~ 95%, non-condensing
Operating Temperature	0°C ~ 60°C
Expansion Slots
Expansion Slots	1 x PC/104
I/O Interface
Audio	Realtek ALC203 with AC`97 codec
Digital I/O	1 x 8-bit digital I/O (2x5 pin)
Ethernet	LAN: 10/100Mbps RTL8100C Ethernet Controller
I/O Interface
I/O Interface	4 x USB 2.0
	6 x Internal RS-232
	1 x RS-232
	1 x Internal RS-232/422/485
Power
Power consumption	[email protected] (AMD Geode™ LX 800 with one 1GB 400MHz DDR memory)
Storage
Storage	1 x CF Type II 1 x IDE (2x22 pin, P=2.0)
System
Chipset	AMD CS5536
CPU	AMD Geode™ LX 800 (500MHz)
CPU Socket	On Board
Memory Max.	One 200-pin 400/333MHz DDR SDRAM SODIMM slot support up to 1GB
Watchdog Timer
Watchdog Timer	Software programmable supports 1~255 sec. system reset
