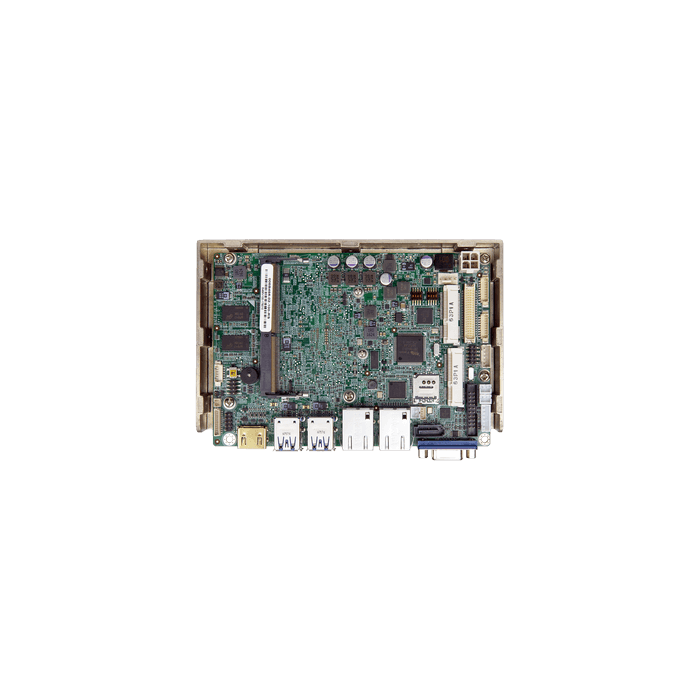

WAFER-ULT3 3.5” SBC 6th Gen i7/i5/i3/Celeron

In stock
SKU:
WAFER-ULT3-xx-R10
Brand: IEI Integration Corp.

Category: Single Board Computers

3.5” SBC supports Intel® 6th Generation ULT Processor with DDR4 SO-DIMM/On-board Memory Support


Enquire Now
Enquire about this product:

3.5” SBC supports Intel® 6th Generation ULT Processor with DDR4 SO-DIMM/On-board Memory Support



·         3.5” SBC with Intel® 6th Generation ULT processor supports DDR4 SO-DIMM (on-board memory support by request)

·         Triple display with VGA/iDP, HDMI and LVDS selection

·         Two PCIe Mini with mSATA/SIM card slot support

·         Intel® GbE LAN with Intel® AMT 11.0 supported

·         IEI One Key Recovery solution allows you to create rapid OS backup and recovery


This product is listed in Industrial Automation, Gaming, Mining, Medical, IEI Integration Corp., Embedded Boards
Spec Item Description
System
CPU 6th generation Intel® mobile ULT processor
Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)
Intel® Celeron® processor 3855U (up to 1.6GHz, dual-core, 2MB cache, TDP=15W)
Memory Max. 1 x 260-pin 2133MHz DDR4 SDRAM SO-DIMM (channel 1, supports up to 16GB)
On-board 4GB/8GB DDR4 memory (channel 2, optional support by request)
I/O Interface
Ethernet 1 x Intel® I219LM
1 x Intel® I211AT
Digital I/O 1 x 8-bit digital I/O (2x5 pin)
Display Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x HDMI (up to 4096x2160@30Hz)
1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (co-layout with VGA)
Audio 1 x HD audio (2x5 pin, supports 7.1-channel HD audio by AC-KIT-892HD-R10)
Expansion 1 x Full-size PCIe Mini slot (w/ SATA signal, supports mSATA)
1 x Full-size PCIe Mini slot (w/ SIM card slot support)
*3855U belongs to Skylake ULT Base series which supports PCIe Gen 2 signal only.
Power
Power consumption [email protected] (Intel® Core™ i7-6600U up to 3.4GHz CPU with 16GB 2133MHz DDR4
memory running in 3.0GHz)
Power Supply 12V only DC input
1 x Internal power connector (2x2 pin, or optional terminal block)
Environment
Operating Temperature -20°C ~ 60°C
Safety & EMC CE/FCC compliant
Humidity 5% ~ 95%, non-condensing
Storage Temperature -20°C ~ 60°C
Dimensions
Dimensions 146mm x 102mm
Weight
Weight GW: 600g / NW: 250g
Watchdog Timer
Watchdog Timer Software programmable, supports 1~255 sec. system reset
I/O Interface
I/O Interface 4 x USB 3.0(External I/O)
2 x Internal USB 2.0(2x4 pin, P=2.0)
2 x Internal RS-232/422/485(1x9 pin, P=1.25)
1 x SMBus(1x4 pin, P=2.0)
1 x SATA 6Gb/s(6Gb/s with 5V SATA power connector)
