SKU: WSB-H610

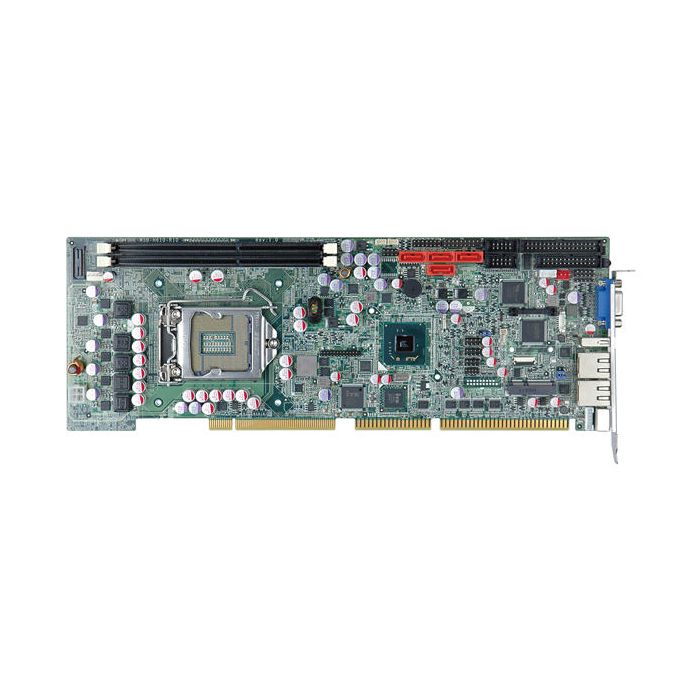

Full-size PICMG 1.0 CPU Card supports 32nm LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® H61

Datasheet

Description

Full-size PICMG 1.0 CPU Card supports 32nm LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® H61

· Full-size PICMG 1.0 CPU card with LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported

· Two DDR3 & DDR3L 1333/1066 MHz DIMM SDRAM supported up to 16 GB

· Embedded controller on board supports infrared and PECI 2.0 technologies

· Dual Realtek PCIe GbE and LAN1 with ASF 2.0 support

· TPM V1.2 hardware security function supported by TPM module

· IEI One Key Recovery solution allows you to create raipd OS backup and recovery

Product Data Sheet

User Manual

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
CPU Cooler
CPU Cooler	CF-1156A-RS-R11 CF-1156C-RS CF-1156D-RS CF-1156E-R11
Environment
Humidity	5% ~ 95%, non-condensing
Operating Temperature	-10°C ~ 60°C
Expansion Slots
Expansion Slots	PCIe Mini
I/O Interface
Audio	Supports by IEI AC-KIT-892HD-R10 audio kit
Digital I/O	8-bit Digital I/O
Display	1 x VGA 1 x DVI-D(via header to IO-KIT-001-R20 DVI-D/USB module)(optional)
Ethernet	LAN1: Realtek RTL8111E PCIe GbE controller with ASF 2.0 support LAN2: Realtek RTL8111E PCIe GbE controller
I/O Interface
I/O Interface	1 x I²C
	1 x USB 2.0
	1 x LPT
	1 x KB/MS
	6 x Internal USB 2.0
	1 x Internal RS-422/485
	2 x Internal RS-232
	1 x SMBus
Power
Power consumption	[email protected], [email protected], [email protected], [email protected] (3.4GHz Intel® Core™ i7-2600K with two 2GB 1333MHz DDR3 memory)
Storage
Storage	4 x SATA 3Gb/s
System
Chipset	Intel® H61
CPU	Intel® Core™ i7/i5/i3, PentiumR, Celeron® processor
CPU Socket	LGA1155
Memory Max.	Two 240-pin 1333/1066MHz dualchannel DDR3 & DDR3L (1.35V) DIMMs supported (system max. 16GB)
Watchdog Timer
Watchdog Timer	Software programmable and supports 1~255 sec. system reset
