IPC970 10th Gen i7/Xeon + NVIDIA RTX3090 GPU

In stock
SKU:
IPC970-10W-F5E1
Brand: Axiomtek

Industrial System 10th Gen Intel Xeon and Core i7/i5/i3 Processors, Intel W480E, Front-access I/O and 4 x PCIe Slots

Key Features:

  • Intel Xeon or Core i7/i5/i3 processor, up to 80W
  • Intel W480E chipset
  • Offers up to 400W power for accelerator card
  • Supports M.2 Key B slot for 5G wireless connection
  • Supports M.2 Key E slot for Wi-Fi connection
  • Supports power-on delay function
  • Supports TPM 2.0
  • Supports Intel AMT

Enquire Now
Enquire about this product:

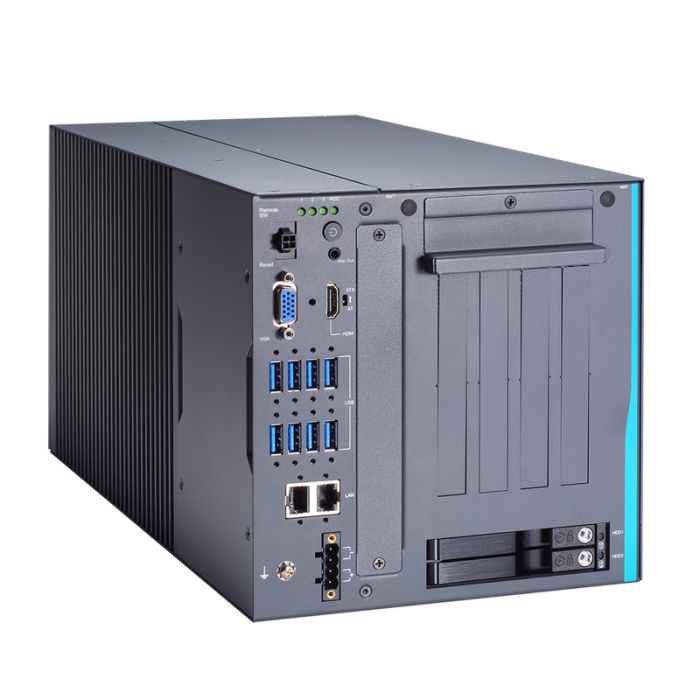

main product photo
We build to order

The IPC970 is powered by the Intel® Xeon® or 10th generation Intel® Core™ i7/i5/i3 processors with the Intel® W480E chipset. The powerful edge computing system supports NVIDIA® GeForce RTX™ 3090 graphics card with 10,496 CUDA cores and a whopping 24GB of GDDR6X memory for powerful GPU computing capability. The ruggedized IPC970 provides flexible expansion options with one I/O module slot and three PCIe slots plus one blank expansion slot. In addition, it has a full-size PCIe Mini Card slot for Wi-Fi/Bluetooth/LTE modules, one M.2 Key B 3042/3050 socket for 5G wireless connections, and one M.2 Key E 2230 socket for Wi-Fi/Bluetooth modules. Its front-facing I/O design makes it easy to access and deploy. To ensure stable and reliable operation in harsh industrial environments, the IPC970 has a wide operating temperature range of -10°C to +70°C and a power input of 24V DC (uMin=19V/uMax=30V) with power-on delay function, over-voltage protection, over current protection, and reverse voltage protection.


This product is listed in Axiomtek, Embedded Computers
Specifications
CPU
  • Intel® Xeon® and 10th Gen Intel® Core™ i7/i5/i3 processors (Cometlake-S), up to 80W
Chipset
  • Intel® W480E
System Memory
  • 4 x DDR4-2933 MT/s ECC or non-ECC U-DIMM socket, up to 128GB
BIOS
  • AMI
COM
  • Available from extension I/O modules
USB
  • 6 x USB 3.2 Gen2 (10G)
  • 2 x USB 3.2 Gen1
  • 1 x USB 2.0 (internal, 180D type A for license key)
  • More USB ports are available from extension I/O modules
Ethernet
  • 1 x 2.5 Gigabit LAN (Intel® i225-LM)
  • 1 x 1 Gigabit LAN (Intel® i211-AT)
  • More LAN ports are available from extension I/O modules
Display
  • 1 x VGA 1920 x 1200 resolution
  • 1 x HDMI 4096 x 2304 @30Hz
Digital I/O
  • Available from extension I/O modules
Audio
  • 1 x Line-out
Storage
  • 2 x SSD/HDD drive bay (7/9.5mm height, external)
  • 1 x SSD/HDD drive bay (optional, 7/9.5/15mm height, internal) (supports RAID 0,1)
  • 1 x M.2 Key M 2280 socket (PCIe Gen3 x4) for NVMe SSD
Expansion
  • PCIe x8 (x4 signal)
  • PCIe x16
  • 1 x Full-size PCI Express Mini Card slot with SIM slot (USB & PCIe interface)
  • 1 x M.2 Key E E 2230 socket
  • 1 x M.2 Key B 3042/3050 socket with SIM slot
Others
  • TPM 2.0
Power
  • Type: ATX/AT
  • Input: 24 VDC (uMin=19V/uMax=30V)
Construction
  • Aluminum extrusion heavy-duty cold-rolled steel
Operating Temperature
  • -10°C to +70°C (+14°F up to +149°F) with W.T. HDD/SSD
Relative Humidity
  • 10% to 90%, non-condensing
Dimensions
(W x H x D)
  • 190 x 192 x 360 mm (7.48" x 7.55" x 14.17") (D)
  • CE
Weight (net/gross)
  • 9.8 kg/7.3 kg
Software Support
  • N/A
Certifications
  • CE
Downloads
pdf
Datasheet
