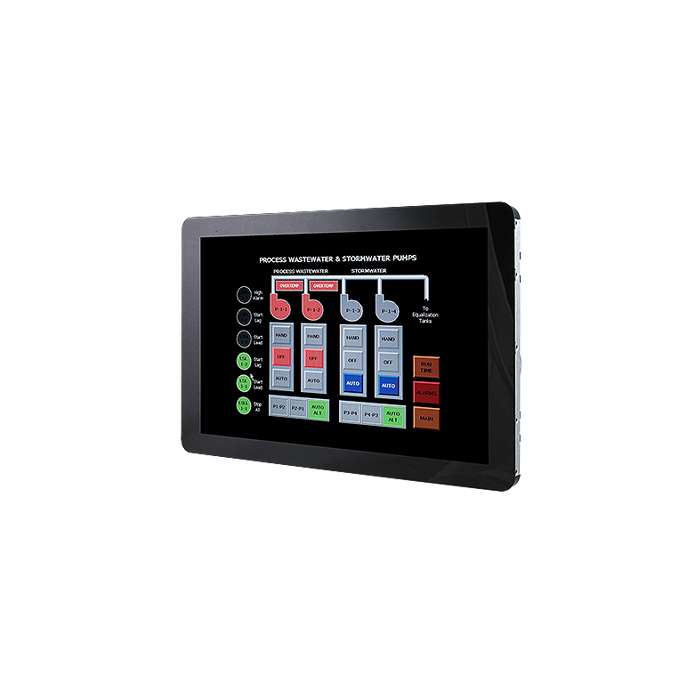

OFT-10WR1 10.1" RK3288 ARM Open Frame Panel PC

In stock
Brand: Avalue Technology Inc.

10.1" Open Frame Tablet with RK3288

Enquire Now
Enquire about this product:

10.1" Open Frame Tablet with RK3288


·         RockChip RK3288W Cortex-A17 Quad Core 1.6GHz

·         2GB or 4G RAM

·         16GB or 32GB eMMC

·         PCAP Touch

·         10/100/1000 Ethernet

·         M.2 B-Key(3042) connector socket

·         802.11 b/g/n Wireless LAN and Bluetooth 4.0

·         DC 12~24V Input

·         Optional Powered LAN 802.3AT

·         Optional 1000 nits / PCAP Touch with 3mm CG

·         OS Image support Android 8.1 / Debian 9

·         Battery Charger

·         Note : You need a 19v or a 24v power adapter to fully charge the battery. You cannot fully charge the battery with a 12v power adapter.

Processor RockChip RK3288W Cortex-A17 Quad Core 1.6GHz
System Memory 2GB or 4GB DDR3L RAM
Storage 16GB or 32GB eMMC
LCD Size 10.1"
Resolution 1280x800
Luminance 350 nits
Optional 1000 nits
Viewing angle 170° (H/V)
Touch Type PCAP
External I/O Connector 1 x Power Jack
1 x HDMI Port
2 x USB Type A Host
1 x RJ45
1 x Headphone Jack
1 x Micro SD slot
1 x Reset
Internal I/O Connector 1 x Micro USB
1 x USB interface , 1 x DMIC interface
1 x USB touch interface
1 x M.2 B-Key(3042)
1 x touch button control(power/vol/brightness)
1 x Power interface (12~24V)
1 x Li-Battery connector
1 x JLVDS1
1 x AMIC interface
1 x Speaker interface
1 x JSEN1 interface (I2C x2)
1 x JITP1 interface
1 x Debug port
1 x RS232 interface
1 x RS232 , RS485
1 x JGPIO1 (GPIO 16bit)
1 x RTC Battery interface
1 x Micro SIM Card socket for LTE module
Multiple Display LVDS+HDMI
Mechanical & Environmental
Power Requirement DC 12~24V Input
Power Type DC Jack, DC input 4pin header
(Optional Powered LAN 802.3AT)
Operating Temperature 0°C ~ 40°C
Storage Temperature -10°C ~ 60°C0
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Weight 1.18kg
Dimension (L x W x H) 252 x 166 x 38mm
Certification Information CE, FCC Class A
Software Support
OS Information Android 8.1 / Debian 9
Wireless Communication
WLAN 802.11 b/g/n
Bluetooth 4.0
