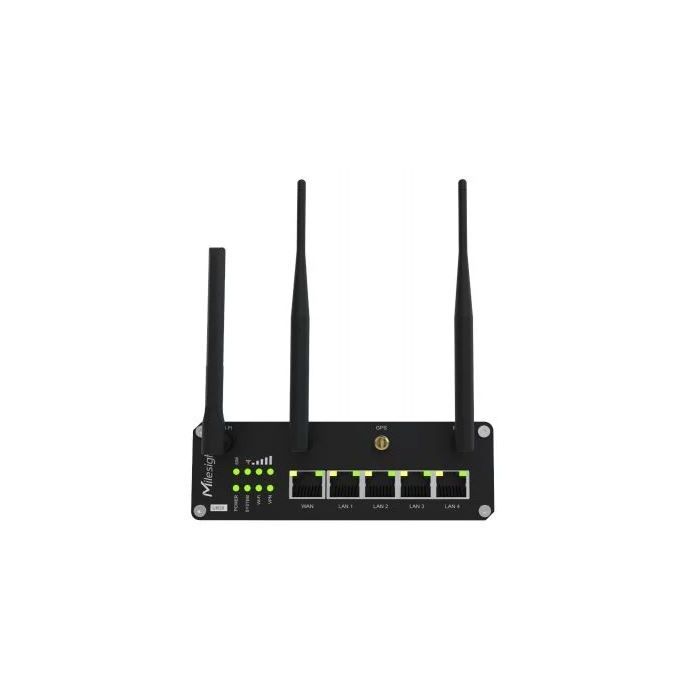

UR35 - 4G Dual sim, wide temp 5 x LAN

In stock

SKU:

UR35-L04AU-W - 3G/4G Dual SIM, 5 x 10/100 LAN, Wifi,RS232

Brand: Milesight IOT

UR35 is a cost-effective industrial cellular router with embedded intelligent software features that are designed for multiple M2M/IoT applications.

Enquire Now

Please fill in your details below, we will get back to you as soon as possible

Features

The UR35 is an industrial-grade 4G LTE cellular router with a 5-port Ethernet interface for mission-critical communications with multiple network protocols and VPN tunnels,

UR35 is built with hardened enclosure, industrial components, and wide operation range from -40°C to 70°C for harsh environments.

Aside from Dual SIM redundancy and Wi-Fi for seamless wireless connectivity,
it is also equipped with serial ports, digital I/O and optional 4 x PSE PoE ports for field communications.

Global 4G LTE/3G network with dual SIM cards for backup between multiple carrier networks
Embedded Python SDK for secondary development
Rugged enclosure, optimized for DIN rail or shelf mounting
3-year warranty included

Accessories included - AC PSU, Cellular and Wifi Paddle antennas, Din rail clip

Specifications

Hardware System
CPU ARM Cortex-A7，528 MHz
Memory 128 MB DDR3 RAM and 128MB Flash
Extendable Storage 1 × Micro SD
Cellular Interface
Antenna Connector 2 × 50 Ω SMA Connectors (Center PIN: SMA Female)
SIM Slots 2（Mini SIM-2FF）
Ethernet Interface
Numbers 5 × 10/100 Mbps
Property 1 × WAN + 4 × LAN
Mode Full or half duplex (Auto-Sensing)
PoE 4 × 802.3 af/at PoE PSE on LAN Ports (Optional)
Wi-Fi Interface (Optional)
Antenna Connector 1 × 50 Ω SMA Connector (Center PIN: RP-SMA Female)
