NEXCOM ATC3200 TX2 AI Computer for ADAS and Machine Vision

End of Life

SKU: ATC3200

Compact AI Edge Computer Jetson TX2 for ANPR, ADAS, ITS or rail applications

Key Features:

AIoT edge gateway for ADAS and smart factory applications
Built-in NVIDIA Jetson TX2 SOM up to 1.3 TFOPS compute
The compact, rugged and fanless design
4-CH MIPI SerDes CAM in synchronization to reach up to 15m/25m distance
Operate over a wide range temperature -30~70°C
Two GbE with PoE+ for LiDAR or GigE Vision/IP CAM
Diverse data secure storage, eMMC, SD and 2.5” SSD
Built-in GNSS & Wi-Fi module, optional for LTE/5G
Rich I/O ports: USB 3.0, OTG, COM, DI/DO, CAN and 12V/5VDC, etc.
9~36V DC-in with IGN control
CE/FCC, Emark certified

Datasheet

Description

AI has evolved into a necessary component of automated vehicle technologies. The rugged ATC 3200 can perform deep learning inference acceleration up to 1.3TFLOPS computing power, making it suitable for in-vehicle/rolling stock applications such as ANPR, ADAS, driver facial/behavior recognition, and even ITS for smart cities. Furthermore, it can be used in smart factories to accelerate industrial 4.0. The ATC 3200 is a fanless box with a 936V wide-range DC-in with IGN control, diverse I/O functions such as GbE/PoE, USB 3.0, isolation CAN, serial COM, DI/DO, and a 12V/5V DC-OUT, specialised to an AIoT edge gateway to interface with peripheral sensors such as radar, ultrasonic, LiDAR, and MIPI cameras to complete an ADAS/ADS system.

Key Features:

AIoT edge gateway for ADAS and smart factory applications
Built-in NVIDIA® Jetson™ TX2 SOM up to 1.3 TFOPS compute
The compact, rugged and fanless design
4-CH MIPI SerDes CAM in synchronization to reach up to 15m/25m distance
Operate over a wide range temperature -30~70°C
Two GbE with PoE+ for LiDAR or GigE Vision/IP CAM
Diverse data secure storage, eMMC, SD and 2.5” SSD
Built-in GNSS & Wi-Fi module, optional for LTE/5G
Rich I/O ports: USB 3.0, OTG, COM, DI/DO, CAN and 12V/5VDC, etc.
9~36V DC-in with IGN control
CE/FCC, Emark certified

Download

Datasheet

User Manual

* You have to Login or Register to download this file

More Information

Brand

Nexcom

Specifications

NVDIA® Jetson™ TX2 Integrated	Dual-Core NVIDIA® Denver 2 64-bit CPU and quad-core ARM® A571.3 TFOPS compute (FP16)256-Core Pascal integrated GPU @1.2GHzOpenGL 4.5, OpenGL ES 3.2, and Vulkan 1.0DirectX® 12 compliantH.264/H.265 HW encode/decode
Memory	8GB 128-bit LPDDR4, 1600MHz
Storage	32GB eMMC 5.1 storage1 x Accessible SD1 x 2.5” SSD (15mm height) storage
Expansion	1 x Full size mPCIe socket (PCIe 2.0 + USB 2.0)Key B 3042/3052 M.2 socket (USB 3.0/2.0)
GbE	2-Port individual 10/100/1000Mbit/s, RJ45Controller: Intel® I210 IT (Jumbo frame & PTP support)
PoE	IEEE 802.3af/at compliant2-Port in total 30W power budgePoE ON/OFF and power watt monitoring
MIPI CSI-2 (option)	Up to 4 x individual channel (up to 4K/8MP)Thine SerDes solution (V-by-One® HS)1080p60 2Mpixel per channel @15m long reach720p30 1Mpixel per channel @25m long reachIntegrated with 3rd party Appro MIPI SerDes Camera - 1080p CAM: AP-AR0234GSC-ISP-S-SerDes(V-by-One®) - 720p CAM: AP-AR0144GSC-ISP-S-SerDes(V-by-One®)
USB	2 x USB 3.0, type A - 5V@900mA each - 5Gbit/s link speed & compliance with USB2.0 (LS/FS/HS link speed)1 x USB 2.0 type-A & 1 x OTG microUSB
Serial Port	2 x RS232/422/485 software selectable & 1x console portRS232: working voltage, +- 9V, baud rate up to 115.2kb/s2-Wire RS482: baud rate: 300~115.2Kbps, data bit: 7/8-bit, stop
DI/DO	4-Bit input - Source: 9~36VDC ([email protected]/[email protected]) - External: 0~33VDC pull-high, high-level, 3.3 - 33VDC; low-level, 0 - 2 VDC4-Bit output - Source: 9~36V-in (nominal 17mA@12V, 35mA@24V) - External: 5~27VDC pull-high, sink current w/ 220mA for each bit, 500mA max (@25°C)Source or external can be selected by software (default: source type)
CAN Bus	2 x CAN 2.0A/2.0B from TX2 SOMIEC 61000-4-2 Electrostatic Discharge (ESD): ± 8KV/15KV (contact/air)2.5KV isolated
DC-Out	12VDC/2A & 5VDC/1A, mini-fit connector
Audio	Line-out (unbalance stereo, left & right channel) & Mic-in
Display	1x HDMI v1.4, up to 4096x2304@24Hz
GPS and Sensor	U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/BeidouDead reckoning available (NEO-M8U/M8L) in optionBuilt-in G-sensor
I/O Ports, Front-Plate	ATX power buttonReset button10 x LED indicators for PWR/IGN/WLAN/WWAN/Storage/PoE1 x OTG1 x SD socket2 x Micro SIM slots1 x DB9 (RS232/422/485, console)4 x Z-coded FAKRA for MIPI SerDes CAM (optional)

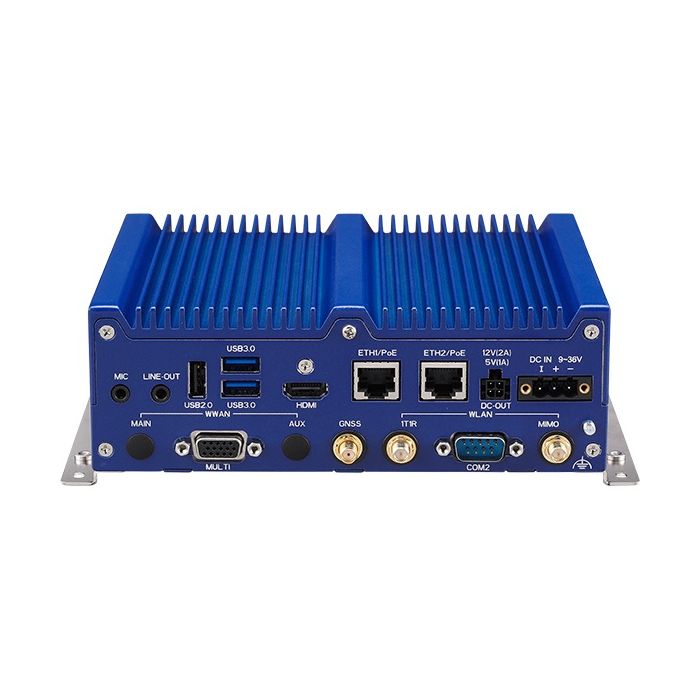

I/O Ports, Rear-Plate	3-Pin terminal block for 9~36VDC-IN2 x USB 3.0 + 1 x USB 2.0, type A1 x HDMI2 x GbE (RJ45)1 x DB9 (RS232/422/485)1 x DB15 (4 x DI + 4 x DO + 2 x CANBus)12V & 5VDC output2 x Audio-jack (left/right Line-out & Mic)5 x SMA for antenna
Dimensions & Weight	180 x 156 x 60 (W x D x H, mm)2.4kg
Environment	Operating temperatures: -30°C~70°C (depends on TX2 throttoling control)Storage temperatures: -40°C~85°CRelative humidity: 10%~95% (non-condensing)
Vibration & Shock	Vibraion in operating - MIL-STD-810G, 514.6C, Procedure 3, Category 4 - IEC 60068-2-64: 2.0g@5~500 Hz - MIL-STD-810G, 514.6E, Procedure 1, Category 24, 7.7g approx.Shock - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Regulation	CE approval, FCC Class A, E13 Certified
Operating System & Software	Ubuntu Linux x64 version 18.04Driver/SDK ready - NVIDIA® JetPack 4.4, MIPI SerDes Pack, custom-made SDK
Options	Ublox-M8U moduleMIPI-cable-15mMIPI-cable-25mUblox-M8L module
