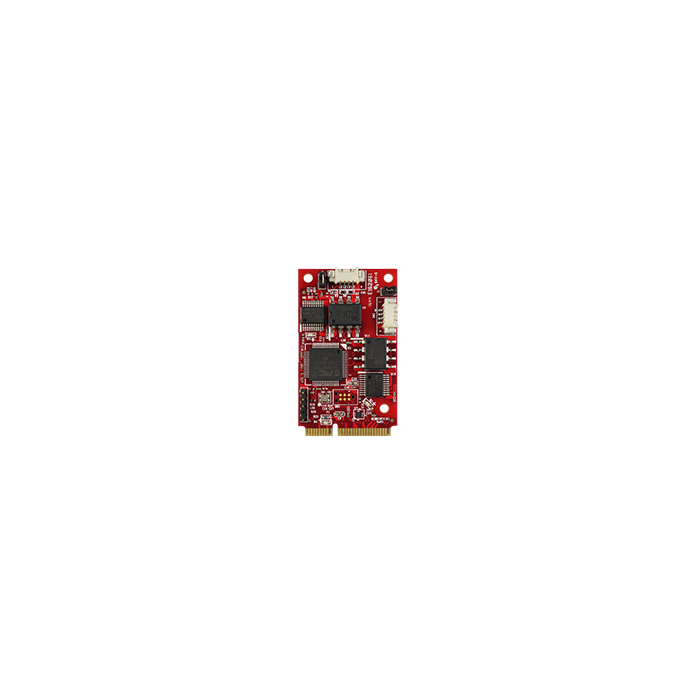

Shop EMUC-B202 USB to dual isolated CANbus

SKU: EMUC-B202-W1/W2/W3

- CANbus 2.0B compatible 2.0A

- Baud rate 100/125/250/500(default)/800/1000K
- Linux SocketCAN support

Datasheet

Description

^{Module Name}	^EMUC-B202
^{Module Type}	^{USB to dual isolated CANbus 2.0B/J1939 Module}
^Function	^CANbus
^{Form Factor}	^mPCIe
^{Input I/F}	^{USB 2.0}
^{Output I/F}	^{CANbus 2.0B}
^{Output connector}	^{2 x DB-9}
^TDP	^{1.62W (3.3V, 490mA)}
^{Dimensions (W x L x H/mm)}	^{30 x 50.9 x 8.35}
^Temperature	^{Operation: W/T temp: -40°C ~ +85°C} ^{Storage: -55°C ~ +95°C}
^Environment	^{Vibration: 5G @7~2000Hz} ^{Shock: 50G @ 0.5ms}
^Notes	^{Download driver and API from MyInnodisk website.} ^{Windows: XP(32bit), 7(32/64bit), 8/8.1(32/64bit), 10(32/64bit)} ^{Linux: Kernel 2.6 and above (Native CDC-ACM driver),} ^{Kernel 2.6.38 and above (SocketCAN Driver), 32/64bit QNX: 6.6}

Download

Datasheet

Linux SocketCan driver v2.6 & utility v2.7

User Manual

* You have to Login or Register to download this file

More Information

Specifications	CANbus 2.0B backward compatible with 2.0A −Support baud rate 100/125/250/500(default)/800/1000K −Support CAN message acceptance filter −Keep configuration after hardware reboot −Up to 6000 CAN messages per second (receive data) −Support Listen-only mode −Additional driver to support Linux SocketCAN −Support SAE J1939 high layer protocol (Optional) −Termination resistor enabled/disabled by jumper −Complies with EN61000-4-5 2.5kV Surge protection −Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection −Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV −Supports -40 to +85 degrees −Industrial design, manufactured in Taiwan

Specifications

CANbus 2.0B backward compatible with 2.0A
−Support baud rate 100/125/250/500(default)/800/1000K
−Support CAN message acceptance filter
−Keep configuration after hardware reboot
−Up to 6000 CAN messages per second (receive data)
−Support Listen-only mode
−Additional driver to support Linux SocketCAN
−Support SAE J1939 high layer protocol (Optional)
−Termination resistor enabled/disabled by jumper
−Complies with EN61000-4-5 2.5kV Surge protection
−Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013
2.5kV HiPOT protection
−Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
−Supports -40 to +85 degrees
−Industrial design, manufactured in Taiwan

Need something specific?
 We build to order.

We can customise any solutions according to your specifications. Click below to learn more
and contact us.

Learn more Speak to a specialist
