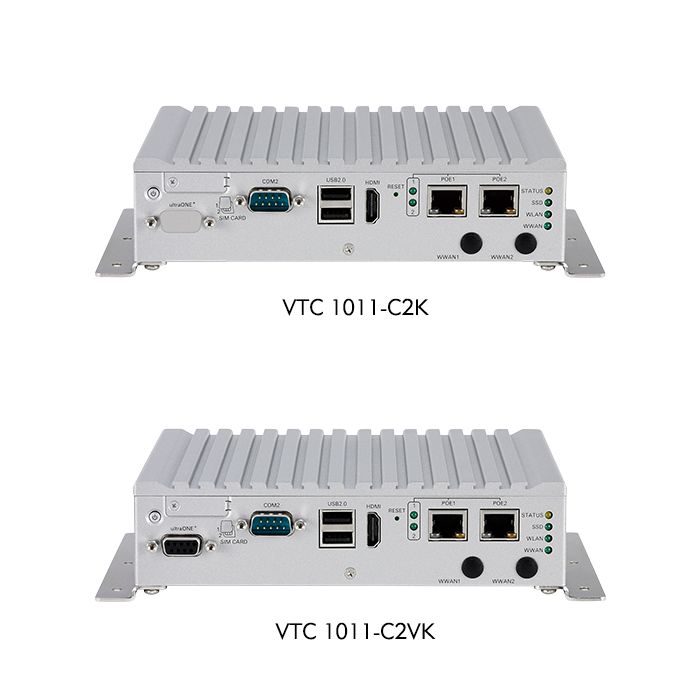

VTC1011 Intel Atom E3825, 2xPoE, Dual sim

End of Life

SKU: VTC1011-C2K/C2VK

Fanless In-Vehicle Computer

Datasheet

Description

Fanless In-Vehicle Computer

· Compact and fanless design

· Intel Atom® processor bay trail E3825 (1.33GHz)

· Built-in 1 x CAN 2.0B, optional SAE J1939/J1708 module

· Dual SIM cards with cover for WWAN modules

· Smart power management with Ignition on/off delay via software control and low voltage protection

· 2 x POE support, total 30W

· ultraONE+ technology support 10M video transmission, collocate with VMD 2003 (VTC1011-C2VK only)

· Wide range DC input from 9~36V

· Wide operating temperature -40°C~70°C

· Certified by CE/FCC/E13

Download

Datasheet

Linux SDK

User Manual

Windows SDK

* You have to Login or Register to download this file

More Information

Brand

Nexcom

Specifications

CPU	Intel Atom® processor bay trail E3825, 1.33GHz
Memory	1 x 204-pin DDR3L SO-DIMM socket support 1066MHz/ 1333MHz up to 8GB. Default 2GB
Storage	1 x 2.5" SSD SATA 2.0 1 x mSATA
Expansion	1 x Full size mini-PCIe socket (USB 2.0 or USB3.0 (option)) 1 x Full size mini-PCIe socket (mSATA + PCIe + USB 2.0)
Function	1 x u-blox NEO-M8N module (support GPS/Glonass/QZSS/Galileo/Beidou) Built-in G-sensor TPM2.0
I/O Interface-Front	1 x Power button with LED 2 x SIM socket (Micro type) with cover 1 x DB9 for RS232 Full 2 x Type A USB 2.0 compliant host, supporting system boot up 1 x HDMI 1 x Reset button 2 x LED for POE status 2 x RJ45 POE 4 x LED for STATUS, SSD, WLAN, WLAN 1 x DB9 for ultraONE+ technology support (VTC1011-C2VK only) 2 x antenna hole for WWAN
I/O Interface-Rear	1 x Phoenix connector for power/GND/Ignition input 1 x 4 x 2 connect for 12V/2A DC output, UART, power button 1 x DB15 multi-port for 1 x CAN 2.0B, 1 x RS232 (Tx/Rx)/RS422/ RS485, 8 x DIO 1 x DB9 for RS232 full 1 x DB15 VGA 1 x Mic-in 1 x Line-out 5 x Antenna hole for WLAN/BT/GPS
Operating System	Windows 7, WES7 Windows 8, WES8 Windows 10 Linux (by request)
Dimensions	185mm (W) x 150.9mm (D) x 45mm (H) (7.28" x 5.94" x 1.77") Weight: 1.3kg (2.9lbs)
Environment	Temperature: Operating temperatures: -40°C to 70°C (w/o PoE), -40°C to 60°C (w/ PoE) Storage temperatures: -45°C to 85°C Damp Heat Test per EN60068-2-30 Humidity: IEC60068-2-3, Damp Heat Steady State Test,40C,95%,48Hrs Vibration: IEC 60068-2-64, 2G Operating: MIL-STD-810G, 514.6C procedure 1, category 4 Storage: MIL-STD-810G, 514.6E procedure 1, category 24 Shock: MIL-STD-810G, 516.6 procedure I, trucks and semi-trailers=40g Crash hazard: procedure V, ground equipment=75g
Standards/Certifications	CE approval FCC Class A E13
