Shop VTK-62B Vehicle UPS

SKU: VTK-62B

Smart UPS Kit for In-Vehicle Application

Datasheet

Description

The VTK-62B is an intelligent rechargeable Lithium-ion battery kit designed to provide an uninterrupted power with a built-in battery management system. Designed to use with NEXCOM vehicle/railway computers with enhanced charge/discharge efficiency it is avail with various mounting brackets to suit. Connected via RS-232 and SMBus interface, VTK-62B can provide crucial information about the status of battery.

· Smart UPS for in-vehicle application

· Big battery capacity 9000 mAh

· Lithium-ion rechargeable cell

· Real-Time battery status availability

· SDK for software development

· RS-232/SMBus for communication

· Power off delay time setting

Download

Datasheet

SDK

User Manual

* You have to Login or Register to download this file

More Information

Specifications

Power Input	9~36VDC
Voltage Out	10.8VDC, max 80W
Battery Type	Lithium-ion
Capacity	9000mAh +/-5%
Smart Battery Status Information	Input voltage Battery capacity Battery temperature Discharge/charge/stop status Bttery failure The value of delay off timer
I/O Interface	1 x 3-pin terminal block (optional M12 connector) for GND, V-In and Ignition 1 x 4-pin terminal block (optional M12 connector) for GND, V-Out and Ignition 1 x 10-pin connector RS232 (TX/RX) SMBus 2 x DO GND 4 x LED indicators Back-up battery power output Capacity alarm Temperature alarm Power in

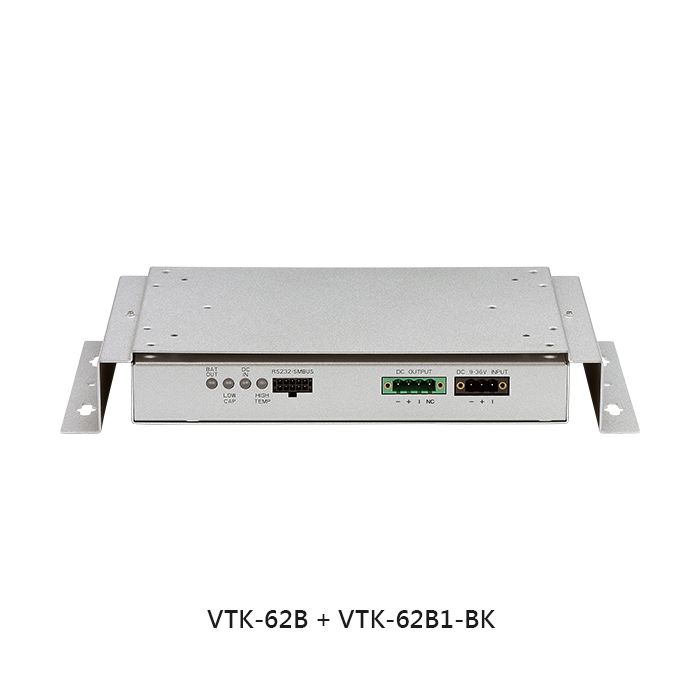

Dimensions	VTK-62B + VTK-62B1-BK, 280 (W) x 150 (D) x 42.2 (H) mm VTK-62B + VTK-62B2-BK, 297.3 (W) x 175 (D) x 39 (H) mm
Environment	Operation temperature - Charging: 0~45°C - Discharging: 0~55°C Vibration - 2G, 5~500Hz (in operation) - Operation: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle Highway Truck - Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity test Shock - Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers=20g - Crash Hazard: MIL-STD-810F, Method 516, Procedure V, Ground equipment=75g
Certification	CE/FCC class A
