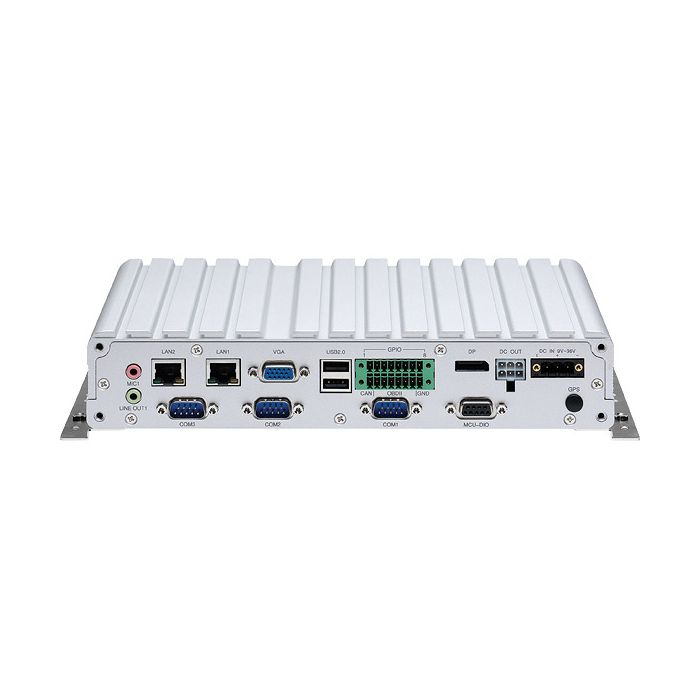

Intel® Atom™ E3845 Fanless In-Vehicle Computer

Datasheet

Description

Intel® Atom™ E3845 Fanless In-Vehicle Computer

· Intel® Atom™ processor quad core E3845, 1.91GHz

· Three SIM cards + dual WWAN modules support

· Built-in U-blox M8N GPS, optional dead reckoning support

· Built-in CAN Bus 2.0B. Optional CAN/OBDII module (CAN Bus 2.0B or OBDII SAE J1939)

· Wake on RTC/SMS via WWAN module

· Compliant with MIL-STD-810G

· 4 x mini-PCIe socket expansion

· Programmable 8 x GPIO

· Voice communication via WWAN module

Download

Datasheet

User Manual

* You have to Login or Register to download this file

More Information

Brand

Nexcom

Specifications

CPU	Intel® Atom™ processor quad core E3845, 1.91GHz
Memory	1 x 204-pin DDR3L SO-DIMM socket support 1066MHz/1333MHz up to 8GB. Default 2GB
Storage	1 x 2.5" SSD/HDD SATA 2.0 (externally accessible, optional lockable storage available) 1 x CFast (externally accessible)
Expansion	1 x Full size mini-PCIe socket (USB 2.0) 1 x Full size mini-PCIe socket (USB 2.0) 1 x Full size mini-PCIe socket (USB 2.0 + PCIe) 1 x Half size mini-PCIe socket (USB 2.0 + PCIe)
Function	1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou) or optional module with Dead Reckoning Built-in G-sensor
I/O Interface-Front	4 x LED for power, storage, WWAN, WLAN 2 x Externally accessible SIM card socket (selectable) 1 x Phone jack 3.5mm for 1 x Mic-in 1 x Phone jack 3.5mm for 1 x Line-out 1 x Externally accessible 2.5" SATA 2.0 SSD/HDD tray 1 x Externally accessible CFast card socket with cover 1 x Event button (trigger type) 1 x Reset button 1 x Type A USB 3.0 compliant host, supporting system boot up 4 x Antenna hole for WWAN/WLAN/BT
I/O Interface-Rear	1 x 9 ~ 36VDC input with ignition and 19W typical power consumption 2 x Type A USB 2.0 compliant host, supporting system boot up 2 x RJ45 10/100/1000 Fast Ethernet with LED 1 x Phone jack 3.5mm for 1 x Mic-in 1 x Phone jack 3.5mm for 1 x Line-out 1 x DB-15 VGA, resolution up to 2560 x 1600 @60Hz 1 x DP port, resolution up to 2560 x 1600 @60H 1 x Antenna hole for GPS 2 x DB-9 RS-232 (RI/12V selectable) 1 x DB-9 RS-422/485 1 x DB-9 for CAN 2.0B (optional CAN Bus 2.0B mini-PCIe card), 2 x MCU-DI and 2 x MCU-DO 1 x 16-pin terminal block - 1 x CAN Bus 2.0B (on board) - 1 x optional CAN/OBDII module (CAN Bus 2.0B or OBDII SAE J1939) - 8 x GPIO (Programmable Digital Input or optional isolation) Input Voltage (internal type): 5VDC TTL (default) Input Voltage (source type): 3 ~ 12VDC (Programmable digital input and digital output) Digital output (sink type): 5VDC TTL (default), max current: 20mA Digital output (source type): 3 ~ 24VDC, max current: 150mA 1 x 12VDC output (2A), SM Bus
Power Management	Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level power on/off delay time by software Status of ignition and low voltage can be detected by software Support S3/S4 suspend mode
Operating System	Windows 8, WES8 Windows 7, WES7 Fedora Wind River® Intelligent Device Platfrom XT 2.0
Dimensions	260mm (W) x 176mm (D) x 50mm (H) (10.24" x 6.93" x 1.97") Weight: 2.1kg
Environment	Operating temperatures: -30°C to 70°C (w/ industrial SSD) with air flow -20°C to 50°C (w/ commercial HDD) with air flow Storage temperatures: -35°C to 85°C Relative humidity: 10% to 90% (non-condensing) Vibration (random): 1g@5 ~ 500 Hz (in operation, HDD), 2g@5 ~ 500 Hz (in operation, SSD) Vibration (SSD/HDD): Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test Shock (SSD/HDD): Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Certifications	CE approval FCC Class A E13 Mark
