VTC1910-S Atom E3815, Built-in U-blox M8N GPS

End of Life

SKU: VTC1910-S

Intel Atom® E3815 Telematics IoT Gateway Super Slim and Ruggedized Design

Datasheet

Description

Intel Atom® E3815 Telematics IoT Gateway Super Slim and Ruggedized Design

· Super slim and ruggedized design

· Intel Atom® processor Bay Trail E3815 (1.46GHz)

· Built-in 1 x CAN 2.0B, optional SAE J1939/ J1708 module

· Smart power management with Ignition on/off delay via software control and low voltage protection

· Built-in U-blox M8N GPS

· Dual SIM cards for WWAN modules

· Wide range DC input from 9 ~ 36V

· Wide operating temperature -40°C ~ 70°C

· Certified by CE/ FCC/ E13 mark

Download

Datasheet

SDK

User Manual

* You have to Login or Register to download this file

More Information

Brand

Nexcom

Specifications

CPU	Intel Atom® processor Bay Trail E3815, 1.46GHz
Memory	1 x 204-pin DDR3L SO-DIMM socket support 1066MHz/ 1333MHz up to 8GB. Default 2GB
Storage	1 x mSATA 1 x SATA DOM
Expansion	1 x Full size mini-PCIe socket (USB 2.0) 1 x Full size mini-PCIe socket (mSATA + PCIe)
Function	1 x u-blox NEO-M8N on board (support GPS/Glonass/QZSS/Galileo/BeiDou) Built-in G-sensor TPM2.0

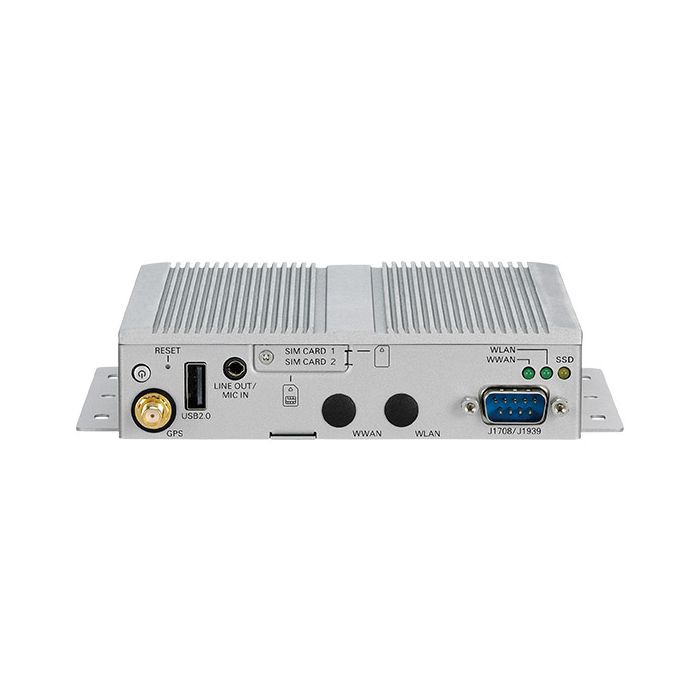

I/O Interface-Front	1 x power button with LED 3 x LED for WWAN, WLAN, SSD 1 x Reset button 2 x SIM socket (Micro Type) with cover 1 x DB9 connector for optional SAE J1939 and J1708 modules 1 x Line-out/ MIC-In 1 x Type A USB 2.0 compliant host, supporting system boot up 3 x antenna hole for GPS/ WWAN/ WLAN
I/O Interface-Rear	1 x Phoenix connector for Power/GND/Ignition input 1 x Type A USB 3.0 compliant host, supporting system boot up 1 x RJ45 10/100/1000 Fast Ethernet with LED 1 x DB15 VGA, resolution up to 2560 x 1600 @60Hz 1 x DB15 for 2 x RS232 (TX/RX), 1 x RS485 (TX/RX),1 x CAN 2.0B, 3 x DI, 3 x DO
Operating System	Windows 7, WES7 Windows 8, WES8 Windows 10 Linux (by request)
Environment	Temperature: Operating temperatures: -40°C to 70°C Storage temperatures: -45°C to 85°C Damp Heat Test per EN60068-2-30 Humidity: IEC60068-2-3, Damp Heat Steady State Test,40C,95%,48Hrs Vibration: IEC 60068-2-64, 2G Operating: MIL-STD-810G, 514.6C Procedure 1, Category 4 Storage: MIL-STD-810G, 514.6E Procedure 1, Category 24 Shock: MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g Crash hazard: Procedure V, ground equipment=75g
Dimensions	130mm (W) x 120mm (D) x 32mm (H) (5.12” x 4.72” x 1.26”) Weight: 0.6 kg (1.3 lbs)
Certifications	CE approval FCC Class B E13 mark
Power Management	Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level power on/ off delay time by software Status of ignition and low voltage can be detected by software Support S3/ S4 suspend mode
