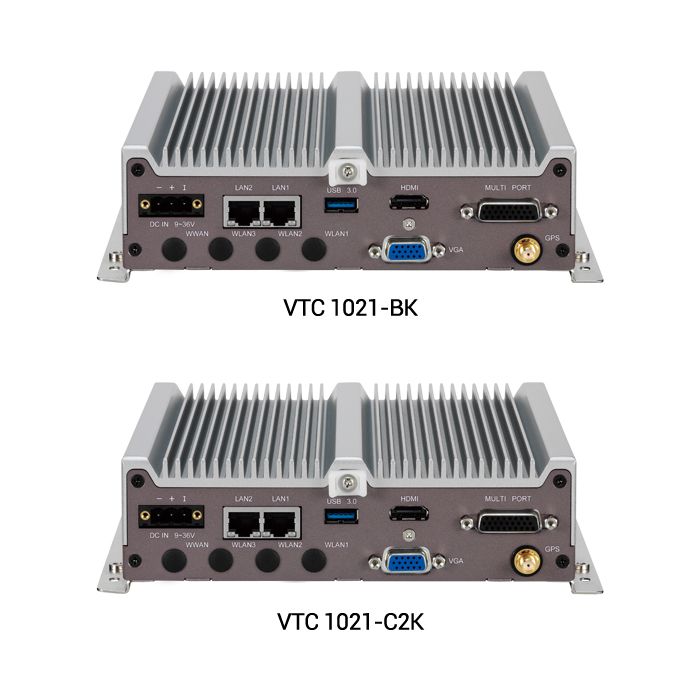

VTC1021 Fanless In-Vehicle Computer with Atom x5-E3940

SKU: VTC1021-BK/C2K

Intel Atom® x5- E3940 Fanless In-Vehicle Computer with 4GB DDR3L SO-DIMM, U-blox M8N GPS

Key Features:

Intel Atom® x5-E3940 processor quad core 1.6GHz
Built-in U-blox M8N GPS, optional dead reckoning support
Built-in CAN 2.0B. optional OBD2 SAE J1708/ SAE J1939
2 x POE support, total 60W (VTC1021-C2K only)
2 x RJ45 10/100/1000 Fast Ethernet with LED
3 x DI and 3 x DO support
Smart power management with Ignition on/ off delay via software control and low voltage protection
A variety of wireless communication options
Certified by CE/FCC/E13 mark

Datasheet

Description

VTC 1021 features next next-generation Intel Atom^® x5-E3940 processor quad-core 1.6GHz, with powerful graphics and multimedia enhancement. VTC 1021 is a rugged, fanless, and 1 DIN compact enclosure for vehicles with limited space to locate the computer system. On board CAN 2.0B and optional OBD interface (SAE J1939) for vehicle diagnostics and driver behaviour management. An advanced GPS receiver supports GPS/Glonass/QZSS/Galileo/Beidou, and optional dead reckoning is also available. VTC 1021 features WLAN and WWAN wireless data and voice connectivity. With a dual SIM external access design, it allows users to access the SIM card conveniently.

Dual PoE functions (VTC1021-C2K only) are suited for most PoE devices, including wireless access points, as well as IP cameras. An additional 12VDC output can be provided for an external display with easy power wire arrangement. VTC 1021 keeps the flexibility to meet different demands for telematics applications, such as infotainment, fleet management, dispatching system and mobile video surveillance.

Download

Datasheet

User Manual

* You have to Login or Register to download this file

More Information

Brand

Nexcom

Specifications

CPU	Intel Atom® processor Apollo Lake E3940, 1.80GHz
Memory	1 x 204-pin DDR3L SO-DIMM socket support 1066MHz/ 1333MHz up to 8GB. Default 2GB
Storage	1 x 2.5” SATA 2.0 1 x mSATA for full-size mini-PCIe socket
Expansion	1 x Full size mini-PCIe socket (USB 2.0+ PCIe + mSATA) 1 x Full size mini-PCIe socket (USB 2.0+ PCIe) 1 x Full size mini-PCIe socket (USB 2.0, optional USB 3.0)
Function	1 x u-blox NEO-M8N module (support GPS/ Gloness/ QZSS/ Galileo/Beidou) Built-in G-sensor TPM (Option)
I/O Interface-Front	1 x Power button with LED 4 x LED for WWAN, WLAN, SSD, GPS 1 x Line-out/ MIC-in 1 x Reset button 1 x DB9 for fully RS-232 2 x Type A USB 2.0 compliant host, supporting system boot up 2 x External accessible SIM card socket (selectable) with cover 1 x DB9 for Expansion Port (Option) 2 x RJ45 PoE (Option, including 2 x PoE LED light )
I/O Interface-Rear	1 x Phoenix connector for Power/ GND/ Ignition input 1 x Type A USB 3.0 compliant host, supporting system boot up 2 x RJ45 10/ 100/ 1000 Fast Ethernet with LED 1 x DB15 VGA, resolution up to 1920 x 1080 @60Hz 1 x HDMI port, resolution up to 3840 x 2160 @30Hz 1 x DB26 port - 1 x CANBus 2.0B - 1 x RS232 Tx/ Rx - 1 x GPS DR (Option) - 3 x DI and 3 x DO - 1 x RS422/ RS485 - 12V/ 2A DC output - GND 4 x antenna holes for GPS/ WWAN/ WLAN
Power Management	Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level power on/ off delay time by software Status of ignition and low voltage can be detected by software Support S3/ S4 suspend mode
Operating System	Windows 10 YOCTO
Dimensions	180 mm (W) x 180 mm (D) x 50 mm (H) (7.09” x 7.09” x 1.97”) Weight: 1.7 kg
Environment	Temperature: Operating temperatures: -40°C to 70°C (w/ industrial SSD) with air flow -10°C to 50°C (w/ commercial HDD) with air flow Storage temperatures: -40°C to 85°C with air flow Damp Heat Test per EN60068-2-30 Humidity: IEC60068-2-3, Damp Heat Steady State Test, 40C, 95%, 48Hrs Vibration: IEC 60068-2-64, 2G for SSD or 0.5G for HDD Operating: MIL-STD-810G, 514.6C Procedure 1, Category 4 Storage: MIL-STD-810G, 514.6E Procedure 1, Category 24 Shock: MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g Crash hazard: Procedure V, ground equipment=75g
Certifications	CE approval FCC Class A E13 Mark

Ordering Information

VTC1021-BK (P/N: 10V00102101X0)
Intel Atom^® processor Apollo Lake E3940, 1.6GHz with 4GB DDR3L SO-DIMM, U-blox M8N GPS on board, VGA/HDMI output, 2 x LAN, 2 x RS-232 (1 x full, 1x Tx/Rx) & 1 x RS-422/485, 1 x CAN 2.0B, 3 x DI & 3 x DO, 2 x USB 2.0 & 1 x USB 3.0, 1 x Line-out/Mic-in

VTC1021-C2K (P/N: 10V00102102X0)
Intel Atom^® processor Apollo Lake E3940, 1.6GHz with 4GB DDR3L SO-DIMM, U-blox M8N GPS on board, VGA/HDMI Output, 2 x LAN & 2 x PoE, 2 x RS-232 (1 x full, 1x Tx/Rx) & 1 x RS-422/485, 1 x CAN 2.0B, 3 x DI & 3 x DO, 2 x USB 2.0 & 1 x USB 3.0, 1 x Line-out/Mic-in
