VTC1010 - Intel Atom E3827, 4x mini-PCIe sockets

In stock
SKU:
VTC1010-BK
Brand: Nexcom

Fanless In-Vehicle Computer, Intel® Atom™ Dual Core E3827

Enquire Now

Please fill in your details below, we will get back to you as soon as possible

Intel¨ ATOM E3827 1.75Ghz CPU, Ignition Smarts, GPS/3G/Wifi/BT, Wake-ON-SMS, Optional Canbus & Video Capture E-mark

The VTC-1010 fanless vehicle PC is a telematics computer designed specifically for in-vehicle use. The units features include 4 x mPCIe slots, 4 USB, 3 COM, Wake-ON-SMS/RTC and dual SIM slots. Its 180x180x50mm footprint is ideal for applications where space is at a premium. The fanless design utilises the ATOM E3727 1.75GHz processor.

Standard functionality includes integral GPS and full smart power management with 9-60v input this includes programmable low voltage protection and ignition delay. Optional modules can be installed features such as 3G, Wifi, BT, analogue video capture as well as advanced GPS (with dead reckoning). All units carry CE, FCC and E-mark.

The device can be used for a range of applications such as vehicle GPS tracking, automatic vehicle locator (AVL), data logging, computer aided dispatch, navigation and surveillance.

Vehicle PCs


CPU

Intel® Atom™ processor E3827, Dual Core 1.75GHz

Memory

1 x 200-pin DDR3L SO-DIMM socket support 1066MHz/ 1333MHz up to 8GB. Default 2GB

Storage

1 x 2.5" SATA 2.0 1 x SD card socket

Expansion

1 x full size Mini-PCIe socket (USB 2.0)

1 x full size Mini-PCIe socket (USB 2.0+ PCIe)

1 x full size Mini-PCIe socket (mSATA or PCIe)

1 x half size Mini-PCIe socket (USB 2.0 + PCIe)

Function

1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou) or optional module with Dead Reckoning Built-in G-sensor, Gyroscope, and e-Compass sensors

I/O Interface-Front

8 x LED for power, system status, storage, WWAN, WLAN, GPS, LAN, GPIO

2 x external accessible SIM card socket (selectable) with cover

1 x audio jack 3.5mm for WWAN voice communication, including:

1 x Mic-In and 1 x Line-Out 1 x external accessible SD card socket with cover

1 x event button (trigger type) 1 x reset button 1 x type A USB 3.0 compliant host, supporting system boot up

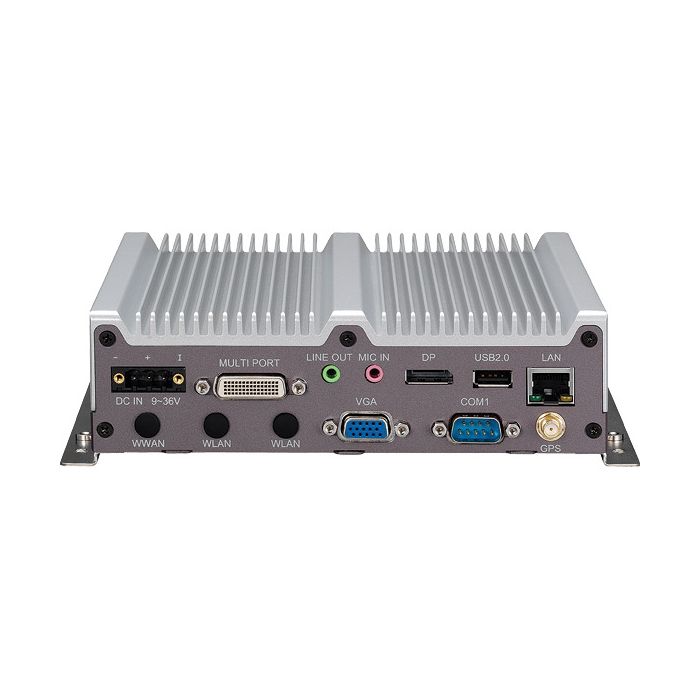

I/O Interface-Rear

1 x 9~36VDC input with Ignition

1 x type A USB 2.0 compliant host, supporting system boot up

1 x RJ45 10/100/1000 Fast Ethernet with LED 1

x phone jack 3.5mm for 1 x Mic-In (for WWAN voice communication)

1 x phone jack 3.5mm for 1 x Line-Out (for PC audio)

1 x DB-15 VGA. Resolution up to 2500 x 1600 @60Hz 1 x DP port.

Resolution up to 2500 x 1600 @60Hz 1 x DB-9 for RS-232 4 x antenna hole for GPS/ WWAN/ WLAN/ B 1 x LHF 60-pin connector
    1 x 6-pin power connector, 12VDC output (max: 1A)
    1 x type A female USB 2.0 compliant host, supporting system boot up
    1 x DB-9 RS-232
    1 x DB-9 RS-422/ 485
    1 x DB-9 female 3 x DI and 3 x DO. On board CAN 2.0B signals
    (Programmable Digital Input)
      Input Voltage (Internal Type): 5VDC TTL (default)
      Input Voltage (Source Type): 0~30VDC
    (Programmable Digital Output)
      Digital Output (Sink Type): 5VDC TTL (default), max current: 20mA
      Digital Output (Source Type): 0~30VDC, max current: 250mA
    1 x DB-9 for optional ODBII module (ASE J1939 or J1708)
    1 x DB-9 for optional GPS Dead Reckening module
    4 x BNC connector Video-In for optional 4-channel video capture card
    4 x audio connector for 7.1 channel audio output
    (front, centre/ woofer, rear surround, side surround)

Power Management

Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level power on/ off delay time by software Status of ignition and low voltage can be detected by software Support S3/ S4 suspend mode

Operating System

Windows 8 Professional, WES8 Windows 7, WES7 Tizen IVI

Dimensions

180 mm (W) x 180 mm (D) x 50 mm (H) (7.09" x 7.09" x 1.97") 1.7kg

Construction

Fanless Aluminium fin top cover and front/ rear panels. SECC bottom enclosure

Environment

Operating temperatures: Ambient with air: -30°C to 70°C

Certifications

CE approval FCC Class B E13 Mark
