ATC8010-7 - 8 x POE, T1000 MXM Kit Option

In stock
SKU:
ATC8010-7
Brand: Nexcom

Intel Core 8th Gen. CPU Powerful Intelligent Platform for ADAS and ANPR/AFR

Key Features:

  • Intel Core 8th Gen. i7-8700T, 2.4GHz, 6 Core
  • 8 x Independent Intel I210-IT 10/100/1000 PoE 802.3af/at
  • AI accelerator MXM module supported
  • ultraONE+ for 10-Meter video + audio output
  • 2 x External SSD and 2 x mSATA for RAID 0, 1, 5, 10
  • 2 x WWAN module and 3 x SIM socket with eSIM option
  • Fanless design
  • 3 x mini-PCIe and 1 x M.2
  • CE/FCC/E mark

Enquire Now
Enquire about this product:

The ATC 8010-7 features a fanless design and a powerful Artificial Intelligence (AI) platform with low power consumption, making it ideal for applications such as ANPR, AFR, and graphics-intensive tasks. Its updated Intel Coffee Lake desktop 35W CPU and AI accelerator MXM module ensures graphic performance, meeting the majority of Automated Intelligent (AI) requirements. The 8-Port 802.3af/at PoE provides a large bandwidth and precise control for big video data analysis. Furthermore, ultraONE+ technology commits to transmitting video and audio over a distance of up to 10 metres. Users can monitor live video without any delay or blind spots using 1 x HDMI and 1 x VGA.

Key Features:

  • Intel Core 8th Gen. i7-8700T, 2.4GHz, 6 Core
  • 8 x Independent Intel I210-IT 10/100/1000 PoE 802.3af/at
  • AI accelerator MXM module supported
  • ultraONE+ for 10-Meter video + audio output
  • 2 x External SSD and 2 x mSATA for RAID 0, 1, 5, 10
  • 2 x WWAN module and 3 x SIM socket with eSIM option
  • Fanless design
  • 3 x mini-PCIe and 1 x M.2
  • CE/FCC/E mark

This product is listed in Industrial Automation, Mining, Transport, Nexcom, Mobile Computing
CPU Intel Core 8th Gen. i7-8700T processors, 2.4GHz, 35W, 6 core
Chipset Intel Q370 platform controller hub
AI Accelerator (MXM Module) T1000 MXM kit (option)
VPU (AIBooster-X8-MXM MXM Module) Eight Intel Movidius Myriad X MA2485 VPUPer MA2485 VPU
- Up to 1 TOPS
- 16 programmable 128-bit VLIW vector processors
- CPUs 2 x LEON 4 cores (RISC; SPARC V8)
- On-chip accelerators 20+ image/vision processing accelerator
- Neural compute engine (DNN accelerator)
- Neural network capability neural compute engine
Storage 2 x 2.5” SATA 3.0 external SSD2 x mSATA
Expansion 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0, SATA 3.0)1 x Full size mini-PCIe socket (USB 2.0), optional M.2 key B (3042)1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0, SATA 3.0 (option))1 x M.2 key B 3042, (USB 2.0, USB 3.2 (Gen1))
GNSS and On-board Sensor 1 x Default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou. Optional modules with dead reckoning availableBuilt-in G SensorTPM 2.0Watchdog timer: Programmable 1~255 sec
Power over Ethernet 8-Port LAN, independent I210-IT 10/100/1000 Mbps, PoE 802.3af/at, max. 60W
I/O Interface-Front 24 x LED indicators (including 4 x programmable LED)1 x HDMI 1.4b from Intel CPU (max resolution: 4096 x 2160 at 30Hz)1 x VGA (max resolution: 1920 x 1200@60Hz)1 x ultraONE+ for 10M video + audio output + 24VDC output2 x USB 3.2 (Gen2) type A (5V/1A)2 x Externally accessible SIM sockets, 1 x internal SIM socket2 x 2.5” removable SSD tray1 x Reset button1 x Power button5 x SMA antenna

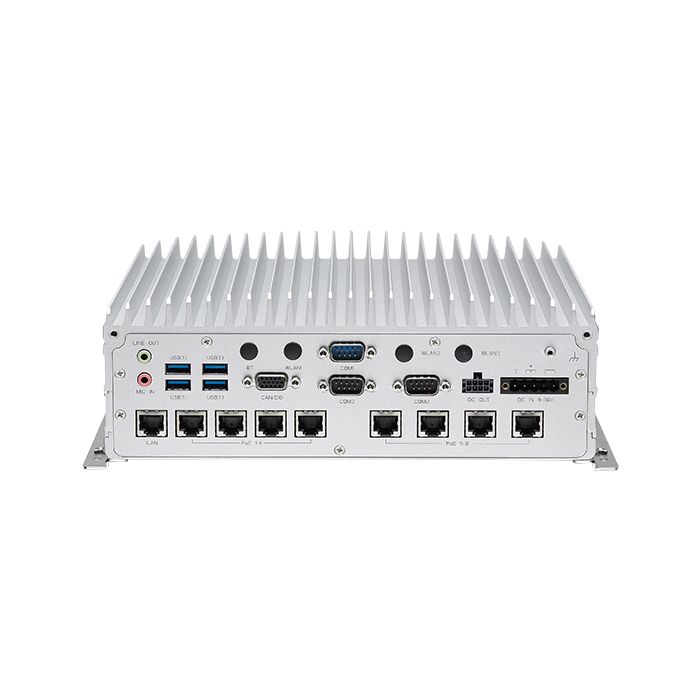

I/O Interface-Rear 8 x PoE 802.3af/at (max. 60W)1 x LAN, I210-IT 10/100/1000 Mbps1 x 5-pin terminal block for 9V~36VDC1 x Mic-in, 1 x Line-out4 x 2 connector for 12VDC/2A output, power button, 2 x MDI2 x DB9 for full RS2321 x DB9 for full RS232/422/485 (RI, 5V/0.5A, 12V/0.5A)1 x DB15
- 1 x Isolated CANBus 2.0B
- 1 x GPS DR
- 4 x DI and 4 x DO
4 x SMA antenna4 x USB 3.2 (Gen2) type A (5V/1A)
Power Management Selectable boot-up & shut-down voltage for low power protection by softwareSetting 8-level power on/off delay time by softwareSupport S3/S4 suspend mode
Operating System Windows 10/11/Linux
Dimensions 260 x 256 x 90.1 (W x D x H) (mm)
Weight 6 kg
Environment Operating temperatures: -30°C~60°C (w/ industrail SSD) with air flowStorage temperatures: -40°C~80°CRelative humidity: 90% (non-condensing)Vibration (random)
- 2g@5~500 Hz (in operation, SSD)
Vibration (SSD)
- Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure
- Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test
Shock (SSD)
- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g
- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Certifications CE approval, FCC Class A, E13 mark, UKCA
