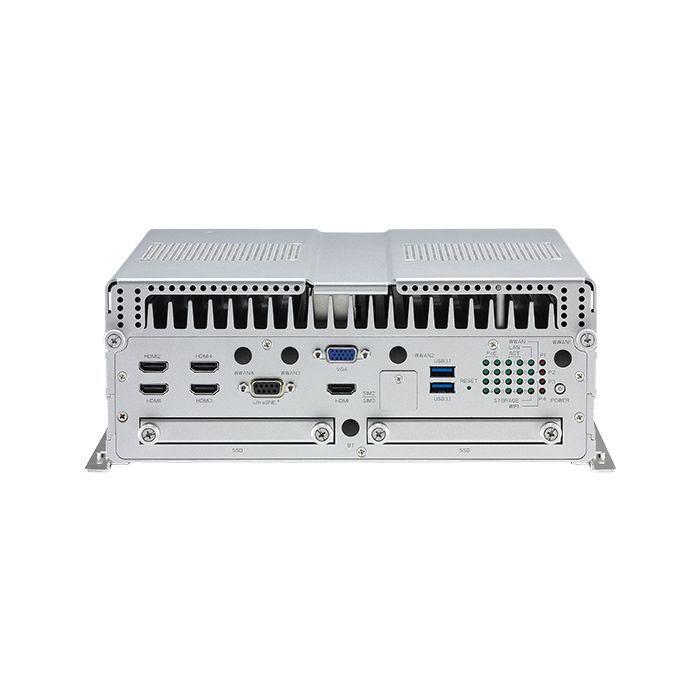

ATC8010 Core 8th/9th Gen Powerful Intelligent Platform

In stock
Brand: Nexcom

AI Vehicle Computer, Intel® Core™ 8th Gen. CPU, Intel® Movidius™ GPU, 8 x POE



Lock You have to Login or Register to download this file
Enquire Now
Enquire about this product

The ATC 8010-7, with its fanless design and powerful Artificial Intelligent platform with low power consumption, is intended for applications requiring high graphic performance, such as ANPR and AFR. Its updated Intel Coffee Lake desktop 35W CPU and AI accelerator MXM module ensures graphic performance, meeting the majority of Automated Intelligent (AI) requirements. The 8-Port 802.3af/at PoE provides wide bandwidth and precise control for big video data analysis. Furthermore, ultraONE+ technology commits to transmitting video and audio over a distance of up to 10 metres. Users can monitor the immediate video without any delay or blind spot thanks to 1 x HDMI and 1 x VGA. RAID 0, 1, 5, 10 ensures the safety of video data in the two external SSDs and two mSATA drives.

Key Features:

  • Intel Core 8th/9th Gen CPU
  • 8 x Independent Intel I210-IT 10/100/1000 PoE 802.3af/at
  • AI accelerator MXM module supported
  • ultraONE+ for 10-Meter video + audio output
  • 2 x External SSD and 2 x mSATA for RAID 0, 1, 5, 10
  • 2 x WWAN module and 3 x SIM socket with eSIM option
  • Fanless design
  • 3 x mini-PCIe and 1 x M.2
  • CE/FCC/E mark


This product is listed in Industrial Automation, Mining, Transport, Nexcom, Mobile Computing, Vehicle PCs
CPU Intel® Core™ 8th/9th Gen CPU
Chipset Intel® Q370 platform controller hub
AI Accelerator (MXM Module) T1000 MXM kit (option)
VPU (AIBooster-X8-MXM MXM Module) 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0, SATA 3.0)1 x Full size mini-PCIe socket (USB 2.0), optional M.2 key B (3042)1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0, SATA 3.0 (option))1 x M.2 Key B 3042, (USB 2.0, USB 3.2 (Gen1))
Storage 2 x 2.5” SATA 3.0 external SSD2 x mSATA
Expansion 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0, SATA 3.0)1 x Full size mini-PCIe socket (USB 2.0), optional M.2 key B (3042)1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0, SATA 3.0 (option))1 x M.2 key B 3042, (USB 2.0, USB 3.2 (Gen1))
GNSS and On-board Sensor 1 x Default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou. Optional modules with dead reckoning availableBuilt-in G SensorTPM 2.0Watchdog timer: Programmable 1~255 sec
Power over Ethernet 8-Port LAN, independent I210-IT 10/100/1000 Mbps, PoE 802.3af/at, max 60W
I/O Interface-Front 24 x LED indicators (including 4 x programmable LED)1 x HDMI 1.4b from Intel CPU (max resolution: 4096 x 2160 at 30Hz)1 x VGA (max resolution: 1920 x 1200@60Hz)4 x HDMI from MXM module1 x ultraONE+ for 10M video + audio output + 24VDC output2 x USB 3.2 (Gen2) type A (5V/1A)2 x Externally accessible SIM sockets, 1 x internal SIM socket2 x 2.5” removable SSD tray1 x Reset button1 x Power button5 x SMA antenna
I/O Interface-Rear 8 x PoE 802.3af/at (max. 60W)1 x LAN, I210-IT 10/100/1000 Mbps1 x 5-pin terminal block for 9V~36VDC1 x Mic-in, 1 x Line-out4 x 2 connector for 12VDC/2A output, power button, 2 x MDI2 x DB9 for full RS2321 x DB9 for full RS232/422/485 (RI, 5V/0.5A, 12V/0.5A)1 x DB15
- 1 x Isolated CANBus 2.0B
- 1 x GPS DR
- 4 x DI and 4 x DO
4 x SMA antenna4 x USB 3.2 (Gen2) type A (5V/1A)
Power Management Selectable boot-up & shut-down voltage for low power protection by softwareSetting 8-level power on/off delay time by softwareSupport S3/S4 suspend mode
Operating System Windows 10/11/Linux
Dimensions 260 x 256 x 90.1 (W x D x H) (mm)
Weight 6 kg
Environment Operating temperatures: -30°C~60°C (w/ industrail SSD) with air flow Storage temperatures: -40°C~80°CRelative humidity: 90% (non-condensing)Vibration (random)
- 2g@5~500 Hz (in operation, SSD)
Vibration (SSD)
- Operating: MIL-STD-810G, Method 514.6, Category 4, common
carrier US highway truck vibration exposure
- Storage: MIL-STD-810G, Method 514.6, Category 24, minimum
integrity testShock (SSD)
- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional
- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash
hazard shock test=75g
Certifications CE approval, FCC Class A, E13 mark, UKCA
