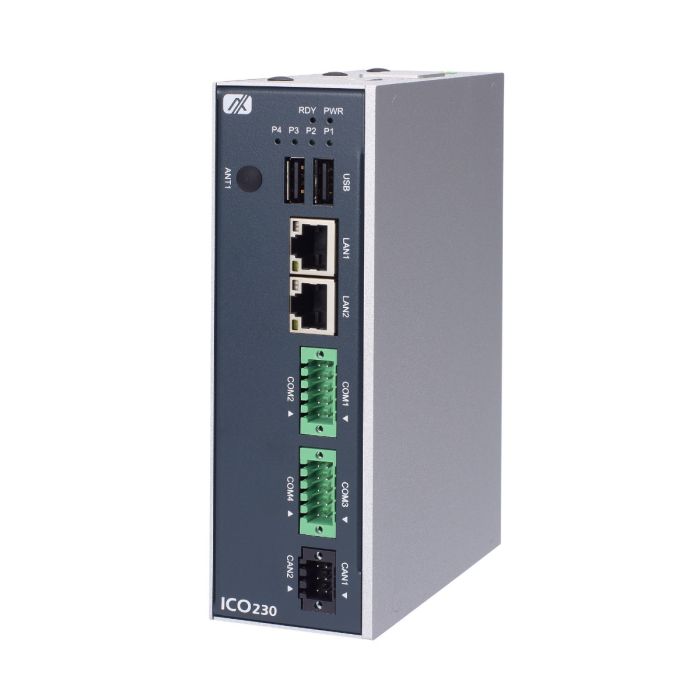

Buy ICO230 RISC DIN-rail Fanless Embedded PC

SKU: ICO230-iMX8MP-A

Robust RISC DIN-rail Fanless Computer with i.MX 8MP Processor, 4 Isolated COM, 2 Isolated CAN FD

Key Features:

Fanless design
RISC-based i.MX 8M-Plus processor
2GB LPDDR4 onboard
16GB eMMC onboard
Isolated COM and CAN FD ports
9 to 48 VDC wide range power input with terminal block
Wide operating temperature range from -40°C to +70°C

Datasheet

Description

The Axiomtek ICO230 is a robust DIN-rail fanless embedded computer, engineered to provide reliable performance in industrial IoT applications. Powered by the Intel® Atom® x6211E or x6413E processors, this compact system is designed for continuous, low-power operation, making it ideal for smart manufacturing, utility management, and other mission-critical environments. It supports dual 2.5GbE LAN, multiple COM ports, and DI/DO options for seamless integration with various devices and sensors. With wide operating temperature and voltage ranges, along with IEC 62368-1 certification, the ICO230 is built to withstand challenging industrial settings, ensuring long-term, stable operation.

Download

Datasheet

User Manual

User Manual (Linux)

More Information

Brand

Axiomtek

Specifications

CPU	NXP i.MX 8M-PLUS ARM CORTEX 4xA53 + M7 Industrial 1.6 GHz
Chipset	SoC integrated
System Memory	1 x 2GB LPDDR4 onboard
COM	4 x Isolated COM with terminal block (RS-232/422/485)
USB	2 x USB 2.0
Ethernet	2 x 10/100/1000 Mbps (Realtek® RTL8211FDI) 1.5 KV magnetic isolation protection
PoE	N/A
CANbus	2 x Isolated CAN FD with terminal block
Digital I/O	N/A
Analog Input	N/A
Display	1 x HDMI
Expansion	1 x Full-size PCIe Mini Card slot (USB 2.0 interface) with 1 x externally accessible SIM socket 1 x M.2 Key E 2230 slot (USB2.0 + PCIe interface)
Storage	1 x 16GB eMMC onboard 1 x Micro SD card slot
Others	1 x Console (Mini USB) TPM 2.0
Power	9 to 48 VDC (typical 12/24/36V) with terminal block OVP, UVP, OCP, RPP power protection design
Watchdog Timer	0.5 to 128 seconds with a time resolution of 0.5 seconds
Construction	Extruded aluminum and heavy-duty steel, IP40 (HDMI bracket must be mounted)
Operating Temperature	-40°C to +70°C (-40°F to +158°F)
Relative Humidity	10% to 95% RH, non-condensing
Vibration	5 Grms, 10 to 150Hz, X/Y/Z direction; random, operating
Dimensions (W x D x H)	48 x 110 x 155mm (1.89" x 4.33" x 6.1")
Weight (net/gross)	0.669 kg/0.822 kg
Certifications	CE, FCC (Class A)
EOS Support	OS: Yocto 4.0 LTS (Kirkstone) Kernel: 5.15.52
Mounting	DIN-rail, wall mount (optional)
