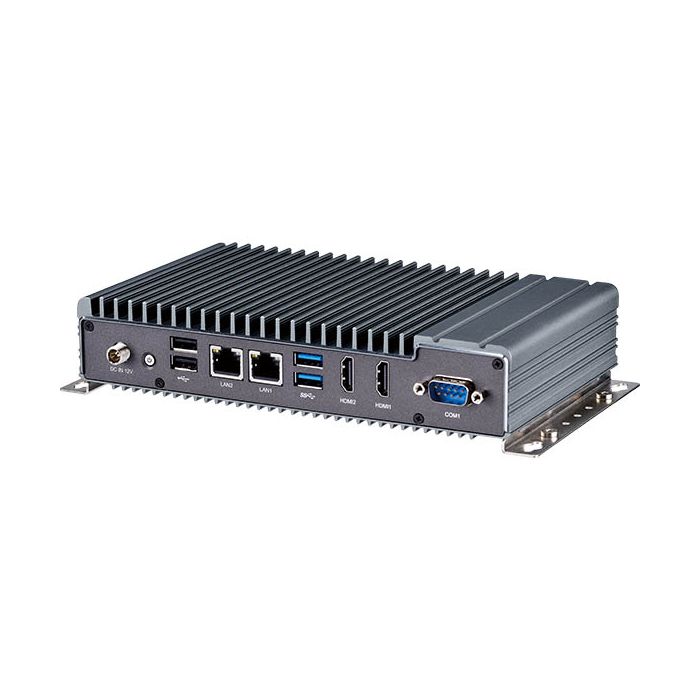

NDiS-B337 Edge Computing System Apollo Lake

SKU: NDiS-B337

Edge Computing System Powered by Intel Apollo Lake J3455 Processor

Description

The NDiS B337 fanless embedded player is powered by an Intel Apollo Lake CPU and can handle two separate display outputs. The NDiS B337 is an excellent embedded player for optimising information visualisation, conveying brand messaging, consumer interaction, and smart retail management efficiency to boost in-store traffic and sales. It has an HDMI display, USB 3.0 ports, and an RS232/RS422/RS485 interface. It may also be used as a gateway within a smart city.

This thin fanless player possesses extended temperature resilience, making it ideal for outdoor applications like QSR drive-through kiosks, box office displays, information stands, bus stops, and digital transit information signs. It's also suitable for advertising, hospitality, and brand promotion applications as a digital signage player, offering improved performance and new immersive experiences.

Download

More Information

Brand Nexcom
Specifications
CPU Support
  • Intel Apollo Lake J3455 processor (2.30GHz, 10W)
Graphics
  • Intel HD graphics 500
Main Memory
  • 1 x 204-pin SO-DIMM socket, support up to DDR3L 1866MHz, non-ECC, un-buffered memory up to 8GB
I/O Interface-Front
  • 2 x RJ45 with LEDs for Gigabit LAN
  • 2 x HDMI 1.4b, resolution 3840 x 2160 30Hz
  • 2 x USB 3.0
  • 2 x USB 2.0
  • 1 x Power button with LED
  • 1 x DC-in Jack with lock
  • 1 x RS232/RS422/RS485 (COM1)
I/O Interface-Rear
  • 2 x Antenna hole
  • 1 x RS232 (COM2)
  • 1 x Storage active LED
  • 1 x Audio jack
Internal I/O
  • 1 x TPM module connector
Expansion
  • 1 x mini-PCIe full-size connector with SIM slot (nano) onboard, support Wi-Fi/LTE module
Storage
  • 1 x M.2 2242 Key M SSD
Power Supply
  • 1 x External 60W AC/DC power adapter with lock (power adapter is included in accessory)
  • Input: 100VAC to 240VAC
  • Output: +12VDC
Environment
  • Operating temperature: -20°C to 60°C
  • Storage temperature: -20°C to 80°C
  • Humidity: 95% (non-condensing)
  • Shock protection: 50G peak acceleration, 11ms according to IEC60068-2-27
  • Vibration protection
    • Random: 2Grms @ 5~500 Hz, IEC60068-2-64
    • Sinusoidal: 2G @ 5~500 Hz, IEC60068-2-6
Dimensions
  • 200mm (W) x 117.6mm (D) x 40mm (H)
Certification
  • CE (EN55035 + EN55032)
  • FCC Class A (EMI Part 15B)LVD (EN62368-1)
Operating System
  • Win10 64-bit
  • Linux 4.1
