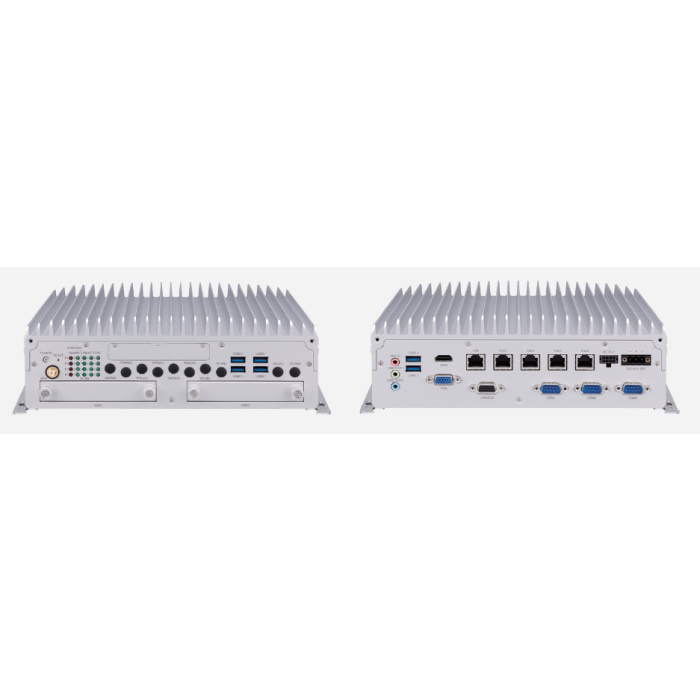

VTC7251-GCIoT Google Cloud AI Vehicle PC

SKU: VTC7251-GCIoT - Google cloud AI Vehicle PC

Intel® Core™ 8th Gen. i7-8700T, 2 x 4 GB industrial grade memory, Google Coral mini-PCIe accelerator, VGA & HDMI output and 2 x external SSD.

Datasheet

Description

· Built-in Google Edge TPU ML mini-PICe accelerator coprocessor

· Intel® Core™ 8th Gen. desktop, i7-8700T, up to 4 GHz, 6 Core

· 4 x Independent 10/100/1000 Mbps PoE 802.3af/at, total 60W

· 1 x VGA and 1 x HDMI video output

· 2 x External SSD and 2 x mSATA (BIOS selection) for RAID 0, 1

· 3 x WWAN module slot, each for 2 x external SIM socket

· 4 x mini-PCIe slot and 1 x M.2 B key slot

· CE/FCC/E mark

Download

Data Sheet

More Information

Brand	Nexcom
Specifications	I/O Interface-Rear 4 x RJ45 PoE 802.3af/at, max. 60W 1 x RJ45 LAN port, 10/100/1000 Mbps 1 x 3-pin terminal block for 9V~36VDC 1 x Connector (4 x 2) for 12VDC/2A output, power button, 2 x MDI 1 x Mic-in, 2 x Line-out 2 x DB9 for full RS232 1 x DB9 for full RS232/422/485 (RI, 5V/0.5A, 12V/0.5A) 1 x DB15 -- 1 x Isolated CANBus 2.0B -- 1 x GPS DR (option) -- 4 x DI and 4 x DO 2 x USB 3.1 type A (5V/1A) 1 x HDMI 1.4b 1 x VGA Power Management & Software Support Power input 9~36VDC Cranking voltage: 6V~9V (< 30 seconds) Reverse protection, OCP & UVP Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level power on/off delay time by software 10~255 seconds WDT support, setup by software SDK (Windows/Linux) including utility and sample code Operating System Linux Dimensions 260 x 256 x 83.5 (W x D x H) (mm) Weight 4.2kg Environment Operating temperatures -- -30°C~60°C (w/ industrial SSD) with air flow Storage temperatures: -40°C~80°C Relative humidity: 90% (non-condensing) Vibration (random) -- 2g@5~500 Hz (in operation, SSD) Vibration (SSD) -- Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure -- Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test Shock (SSD) -- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g -- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g Certifications CE approval FCC Class A E13 mark

Brand

Nexcom

Specifications

I/O Interface-Rear
4 x RJ45 PoE 802.3af/at, max. 60W
1 x RJ45 LAN port, 10/100/1000 Mbps
1 x 3-pin terminal block for 9V~36VDC
1 x Connector (4 x 2) for 12VDC/2A output, power button, 2 x MDI
1 x Mic-in, 2 x Line-out
2 x DB9 for full RS232
1 x DB9 for full RS232/422/485 (RI, 5V/0.5A, 12V/0.5A)
1 x DB15
-- 1 x Isolated CANBus 2.0B
-- 1 x GPS DR (option)
-- 4 x DI and 4 x DO
2 x USB 3.1 type A (5V/1A)
1 x HDMI 1.4b
1 x VGA

Power Management & Software Support
Power input 9~36VDC
Cranking voltage: 6V~9V (< 30 seconds)
Reverse protection, OCP & UVP
Selectable boot-up & shut-down voltage for low power protection by software
Setting 8-level power on/off delay time by software
10~255 seconds WDT support, setup by software
SDK (Windows/Linux) including utility and sample code

Operating System
Linux

Dimensions
260 x 256 x 83.5 (W x D x H) (mm)

Weight
4.2kg

Environment
Operating temperatures
-- -30°C~60°C (w/ industrial SSD) with air flow
Storage temperatures: -40°C~80°C
Relative humidity: 90% (non-condensing)
Vibration (random)
-- 2g@5~500 Hz (in operation, SSD)
Vibration (SSD)
-- Operating: MIL-STD-810G, Method 514.6, Category 4, common
carrier US highway truck vibration exposure
-- Storage: MIL-STD-810G, Method 514.6, Category 24, minimum
integrity test
Shock (SSD)
-- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional
shock=40g
-- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash
hazard shock test=75g
