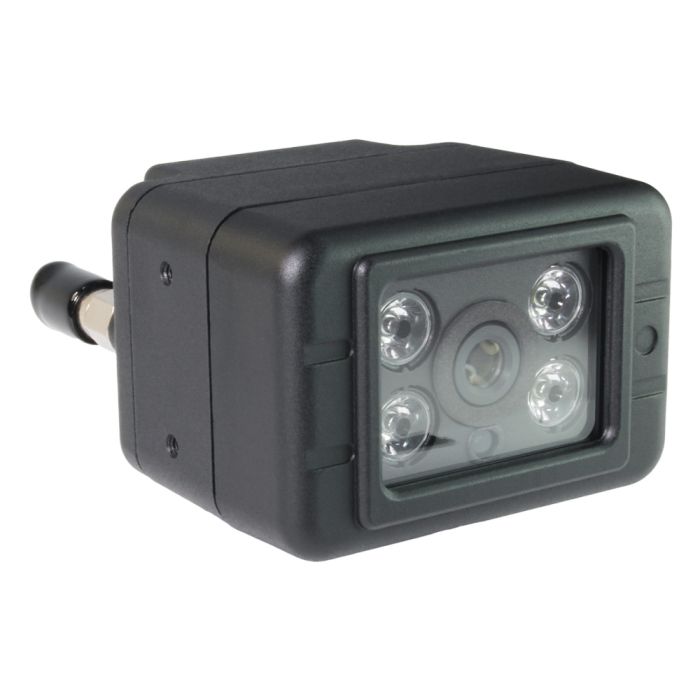

Shop GPCL-029A2GN 2MP H.264 IP68 POE LPR

End of Life

SKU: GPCL-029A2GN

End of Life, Not For New Designs - Replaced by: GPCL-675A1GN

Datasheet

Description

The GPCL-029A2GN is used to capture blind spots on special vehicles used in harsh environments. It is the best camera designed for IP68 waterproof and dustproof conditions, allowing it to be installed outside heavy equipment or garbage trucks and operate without issue even in extreme weather conditions such as snow, rain, and direct sunlight.

Key Features:

- 1/2.7” 2.0 Megapixel Progressive CMOS Sensor
- Fixed lens
- Up to 30fts@1920x1080
- TDN Filter
- 4 Power IR LED (850nm)
- H.264 Dual Stream
- Supports RTSP, ONVIF
- IP68, Nitrogen Filled-In
- 2.9mm Lens Std
- Support POE

** 8mm, 12mm, 16mm and 26mm lenses are for LPR application.

Download

CGI Commands

Datasheet

IP Camera Manager

User Guide

More Information

Brand	GPI Korea
Specifications	CAMERA Lens 2.9mm Image Sensor 1/2.7” 2.1Megapixel Progressive CMOS Sensor Number of Effective Pixels 1920(H) x 1080(V) approx. 2.0M pixels Min. Illumination Color Mode: 0.2 Lux B/W Mode: 0.02 Lux Scanning Mode Progressive Scan Day and Night Mode Automatic, Day, Night, 8 IR LED Auto Exposure Mode Automatic, Manual Shutter Speed Control 1/25 ~ 1/10,000 Auto White Balance Mode Automatic, Manual Digital Zoom Yes by on-screen Back Light Compensation OFF/HLC/BLC/WDR( <30FPS ) DNR OFF/LOW/MIDDLE/HIGH Image Effect Mirror, Flip Privacy Mask 1 Area Selection Video Motion Detection 1 Area Selection (8 10=80 AREA) Lens Shading ON/OFF ACE OFF/LOW/MIDDLE/HIGH Motion ON/OFF Audio G.711 NETWORK Video Compression H.264(Base line profile), MJPEG Video Resolution (30fps@19201080P) H.264 - Primary : 1920 x1080, 1280x720, 640x480, 320x240 H.264 secondary 640x480, 320x240 Video Resolution (60fps@1280720P) (WDR not used) H.264 - Primary : 1280720P, 640x480, 320x240 H.264 secondary 640x480, 320x240 Video Streaming H.264/H.264 or H.264/MJPEG Dual Streaming Login Authority Administrator, Operator, Viewer Security ID/Password Network Time Sync Synchronize Computer/NTP Server, Manual Remote Upgrade Using Web Browser Protocols TCP/IP, UDP, IPv4, HTTP, UPnP, RTP, RTSP, RTCP, DHCP Client Software Built-In Web, ONVIF Compatible 3rd Party VMS Max. User Connection 4 Users SDK Support CGI Command, ONVIF Compliant OPERATION ENVIRONMENTS Operating Humidity 0~80% (non-condensing) Operating Temperature -20℃~ +70℃ PoE Support DC12V Optional Power Consumption 1.6W

Brand

GPI Korea

Specifications

CAMERA
Lens 2.9mm
Image Sensor 1/2.7” 2.1Megapixel Progressive CMOS Sensor
Number of Effective Pixels 1920(H) x 1080(V) approx. 2.0M pixels
Min. Illumination
Color Mode: 0.2 Lux
B/W Mode: 0.02 Lux
Scanning Mode Progressive Scan
Day and Night Mode Automatic, Day, Night,
8 IR LED
Auto Exposure Mode Automatic, Manual
Shutter Speed Control 1/25 ~ 1/10,000
Auto White Balance Mode Automatic, Manual
Digital Zoom Yes by on-screen
Back Light Compensation OFF/HLC/BLC/WDR( <30FPS )
DNR OFF/LOW/MIDDLE/HIGH
Image Effect Mirror, Flip
Privacy Mask 1 Area Selection
Video Motion Detection 1 Area Selection (8 *10=80 AREA)
Lens Shading ON/OFF
ACE OFF/LOW/MIDDLE/HIGH
Motion ON/OFF
Audio G.711
NETWORK
Video Compression H.264(Base line profile), MJPEG
Video Resolution
(30fps@1920*1080P)
H.264 - Primary : 1920 x1080, 1280x720, 640x480, 320x240
H.264 secondary 640x480, 320x240
Video Resolution
(60fps@1280*720P)
(WDR not used)
H.264 - Primary : 1280*720P, 640x480, 320x240
H.264 secondary 640x480, 320x240
Video Streaming H.264/H.264 or H.264/MJPEG Dual Streaming
Login Authority Administrator, Operator, Viewer
Security ID/Password
Network Time Sync Synchronize Computer/NTP Server, Manual
Remote Upgrade Using Web Browser
Protocols TCP/IP, UDP, IPv4, HTTP, UPnP, RTP, RTSP, RTCP, DHCP
Client Software Built-In Web, ONVIF Compatible 3rd Party VMS
Max. User Connection 4 Users
SDK Support CGI Command, ONVIF Compliant
OPERATION ENVIRONMENTS
Operating Humidity 0~80% (non-condensing)
Operating Temperature -20℃~ +70℃
PoE Support
DC12V Optional
Power Consumption 1.6W
