ATC3561-NX4C NVIDIA Jetson Orin NX AI PC

SKU: ATC3561-NX4CF/-16

NVIDIA Jetson Orin NX Solution Accelerated Edge AI Computer

Key Features:

NVIDIA Jetson Orin NX 8GB/16GB SOM, up to 157 INT8 Sparse TOPS AI in Super Mode
Rugged, palm-sized, and fanless/fan kit design
4 x GbE PoE+ port for IP CAM/LiDAR sensors
HEVC/H.265 hardware decode, supports up to 18 x 1080p30
Wide range operating temperature of -25°C~60°C (fan kit, in Super Mode)
Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
Expansible for GNSS, LTE/5G NR & Wi-Fi 5/6
DC 9V~36V input with ignition control & OCP/OVP
NEXCOM Acceleration Linux (NAL) OS w/ JetPack 6.2 integrated
Military standard of MIL-STD-810H for anti-vibration/shock

Datasheet

Description

Product Overview

The NEXCOM ATC-3561-NX4CF is a rugged edge AI computer built for transportation, railway, and industrial deployments. Powered by the NVIDIA® Jetson Orin™ NX SoM, it delivers up to 157 TOPS of AI inference performance (16GB Super Mode), making it ideal for high-demand AI workloads at the edge.

Designed for real-world mobility environments, the ATC-3561-NX4CF is well-suited for applications such as ADAS, ANPR, intelligent transportation systems (ITS), railway safety monitoring, autonomous mobile robots (AMR), and industrial automation, where reliable performance and connectivity are critical.

Key Features

High-Efficiency Edge AI Computing

Powered by NVIDIA® Jetson Orin™ NX SoM
Up to 157 TOPS AI performance (16GB Super Mode)
Supports both:
- 117 TOPS (8GB variant)
- 157 TOPS (16GB variant)
Optimised for AI vision, robotics, real-time analytics, and inference at the edge

Rugged Thermal and System Reliability

Fanless design engineered for harsh transportation and industrial conditions
Stable AI performance across demanding environmental workloads
Built for continuous operation in mobile and trackside deployments

Vehicle and Railway Power Integration

Wide-range DC 9V to 36V input
Supports ignition on/off control and programmable delay timing
Designed for rolling stock, fleet vehicles, and industrial power environments

Rich Connectivity for Sensor-Based AI Systems

4 × GbE PoE+ ports for IP cameras, LiDAR, and long-distance sensor integration
Industrial-grade I/O, including:
- USB 3.2
- HDMI® output
- RS-232 serial
- Isolated CAN FD bus
- DI/DO for vehicle and control interfacing
- OTG and console access

Expandable Wireless Communications

Optional expansion support for:
5G NR / LTE modules
Wi-Fi 5/6 connectivity
Enables connected edge intelligence, remote monitoring, and fleet AI deployment

Dimensions Drawings

Download

Datasheet

User Manual

* You have to Login or Register to download this file

More Information

Brand

Nexcom

Specifications

NVIDIA® Jetson Orin™ NX SOM	Jetson Orin NX™ 8GB - CPU: 6-core Arm® Cortex®-A78AE v8.2 64-bit 1.5MB L2 + 4MB L3 - GPU: 1024-core NVIDIA Ampere architecture with 32 Tensor Cores - Memory: 8GB 128-bit LPDDR5 102.4GB/s - AI performance: 117 INT8 Sparse TOPS in Super Mode Jetson Orin NX™ 16GB - CPU: 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 - GPU: 1024-core NVIDIA Ampere architecture with 32 Tensor Cores - Memory: 16GB 128-bit LPDDR5 102GB/s, 3200MHz in frequency - AI performance: 157 INT8 Sparse TOPS in Super Mode OpenGL 4.6, OpenGL ES 3.2, CUDA® 11.4, and Vulkan 1.1 260-pin SO-DIMM form factor compatible with Xavier NX/TX2 NVIDIA® JetPack 6.2
Storage/Boot Disk	1 x M.2 Key M 2242 PCIe 3.0 x4 NVMe SSD, 128GB in default
Expansion	1 x M.2 Key E 2230 (PCIe 4.0 + USB 2.0) 1 x M.2 Key B 3042/3052 (USB 3.2/2.0) with 2 x nano-SIM slot
Display	1 x HDMI® 2.0a/b, up to 3840x2160@60Hz
G-Sensor	3D accelerometer and 3D gyroscope, ST LSM6DSLTR
Remote Power Trigger	ATX power button, wafer reserved
PoE+	4 x 1GbE RJ45 port - 9K byte Jumbo frame, PTP (IEEE 1588) supported - Switching: Realtek RTL8367RBI-VH-CG-I - IEEE 802.11af/at PoE (30W power budget) - PSE on/off & Watt monitoring
USB	2 x USB 3.2, Type-A - 5V@900mA each - up to 5Gbit/s link speed & compliance with USB 2.0 (LS/FS/HS link speed) 1 x OTG Micro-USB (w/ a door) 1 x USB 2.0, wafer reserved
DI/DO	4-Bit input, non-isolation - Source: DC 9V~36V ([email protected]/[email protected]) - External: DC 0V~33V pull-high, high-level, DC 3.3V~33V; low-level, DC 0V~2V 4-Bit output, non-isolation - Source: DC 9V~36V (nominal 35mA@24V) - External: DC 5V~27V pull-high, sink current w/ 220mA for each bit, 500mA max (@25C) Source or external can be selected by software (default: source type) Connector: Multi-port (DB15)
Serial Port	1 x COM Multi-port (DB15), supports RS-232 (Tx, Rx) - RS-232 working voltage ± 9V, baud rate up to 115.2kb/s 1 x Console port (Tx, Rx), wafer reserved
CAN bus	1 x CAN FD, compatible with CAN 2.0A/2.0B - IEC 61000-4-2 Electrostatic Discharge (ESD): ± 4KV/8KV (contact/air, whole system) - Up to 5Mb/s in data transmit - 2.5KV isolated - Connector: Multi-port (DB15)
GPS	Onboard u-blox NEO-M9N GNSS module for GPS/Glonass/QZSS/Galileo/Beidou Optional NEO-M9V w/ DR (dead reckoning) function
Power Supply	Nominal voltage: DC 9V~36V Cranking voltage: DC 6V~9V (less than 20sec) OCP & UVP (shut down once exceeding 37V) Ignition on/off control & programmable on/off delay timer Optional for remote power on/off control

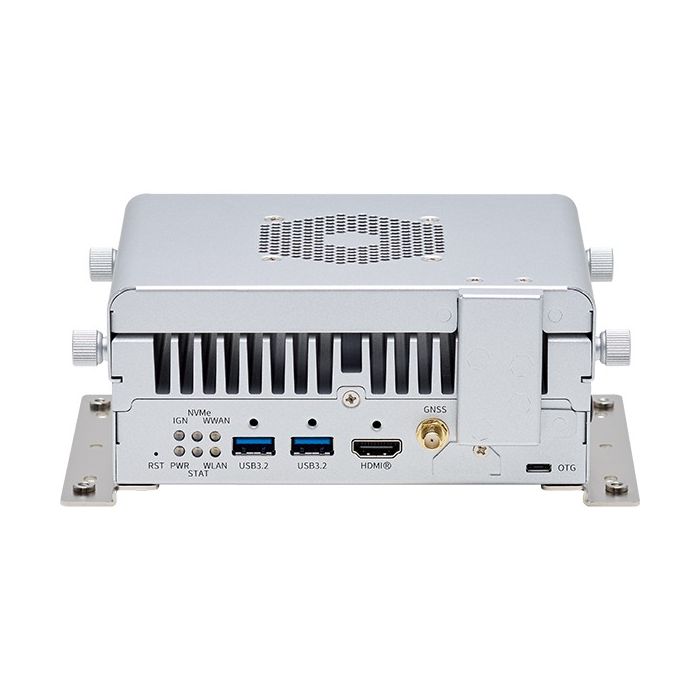

I/O Ports, Front-Plate	6 x LED indicator 1 x Reset button 2 x nano-SIM slot, 1 x OTG 1 x HDMI® 2 x USB 3.2 1 x Multi-port (DB15) 1 x Antenna hole for GNSS (RP-SMA ant.)
I/O Ports, Rear-Plate	DC 9V~36V input, terminal block 4 x 1GbE RJ45 PoE port
I/O Ports, Side-Plate	4 x Antenna hole for LTE/5G module (SMA ant.) 2 x Antenna hole for Wi-Fi 5/6 module (PR-SMA ant.)
Dimension & Weight	Dimensions: 179.4mm (W) x 119mm (D) x 70.1mm (H) (w/ mount bracket,w/ fan kit) Weight: 1.58kg (w/ fan kit)
Environment	Operating temperature: -25°C~60°C (w/ fan kit in Super Mode) - -25°C~60°C (w/ fan kit in Super Mode) - -25°C~55°C (fanless in Normal Mode) Storage temperature: -40°C~85°C Relative humidity: 10%~95% (non-condensing)
Vibration & Shock	Vibration in operating - MIL-STD-810H, 514.8C, Procedure 6, Category 4 - IEC 60068-2-64: 2.0g@5Hz~500Hz - MIL-STD-810G, 514.6E, Procedure 1, Category 24, 7.7g approx. Shock - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Certifications	CE approval, FCC Class A, UKCA, E-mark
Operating System	NEXCOM Acceleration Linux (NAL) w/ Jetpack 6.2 integrated - NEXCOM custom functions (GNSS, 5G NR, 6-axis sensor, MCU control) - V4L2 - Ubuntu 22.04@Kernel 5.15
External Cable	Multi-port adapter cable, 20cm

Ordering Information

ATC3561-NX4CF (P/N: 10AT0356102X0)
Edge AI computer, NVIDIA® Jetson Orin™ NX 8GB, Super Mode
supported, 128GB NVMe, 4 x PoE+, 1 x RS-232, 2 x USB 3.2,
DC 9V~36V input, Fan kit

ATC3561-NX4CF-16 (P/N: 10AT0356103X0)
Edge AI computer, NVIDIA® Jetson Orin™ NX 16GB, Super Mode
supported, 128GB NVMe, 4 x PoE+, 1 x RS-232, 2 x USB 3.2,
DC 9V~36V input, Fan kit
