SKU: EM310-UDL-915M

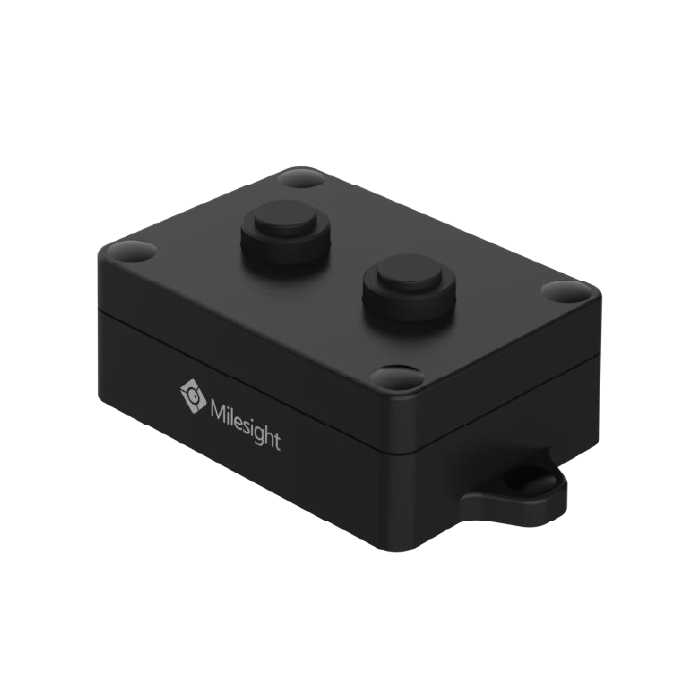

EM310-UDL LoRaWAN Ultrasonic Distance/Level Sensor 3 - 450 cm 60°C Wide Angle

Datasheet

Description

With dual ultrasonic beams, the exceptional EM310-UDL measures from 3 cm up to 450 cm, hence its ultra-short blind zone. It possesses a built-in 3-axis accelerometer that allows you to identify object movement efficiently and reliably. The ultrasonic sensor is compatible with industry-standard LoRaWAN gateways, with a range of up to 15 km in rural areas and 2 km in urban areas. The EM310-UDL is fitting for monitoring fill levels of any kind of waste remotely and accurately in different containers like a waste bin, then triggers alarms to cleaners when the bins are almost full, contributing to the decrease of cost, energy and carbon emission.

Key Features:

3-Axis Accelerometer
Dual Ultrasonic Sensor
IP67 Waterproof
LoRaWAN^® Based
Easy Configuration (via NFC)

Potential Applications:

Smart bin systems
Smart sewer systems
Smart manhole cover
Smart parking systems

Download

Datasheet

User Guide

More Information

Specifications

Wireless Transmission	Technology	LoRaWAN^®
	Frequency	CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923
	Tx Power	16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
	Sensitivity	-137 dBm @300bps
	Mode	OTAA/ABP Class A
Measurement	Distance
	Detection Range	3 – 450 cm
	Detection Accuracy	± (1+0.3%*S) cm, S=distance
	Distance Resolution	1 mm
	Device Position
	Status	Normal/Tilt
Operation	Configuration	NFC Configuration via Mobile App
Physical Characteristics	Power Supply	2 × 3500 mAh ER17505 Li-SOCl2 battery
	Battery Life*	Up to 10 years (10 min interval + 20 triggers per day)
	Operating Temperature	-15°C to +60°C
	Relative Humidity	≤90% (non-condensing)
	Ingress Protection	IP67
	Dimension	111 × 62 × 40 mm (4.37 × 2.44 × 1.57 in)
	Weight	168g
	Material & Color	ABS, Black
	Installation	On the flat surfaces with screws
